304 "Pixie"

304 'Pixie' ; Jewel Radio Corp.; (ID = 289428) Radio

304 'Pixie' ; Jewel Radio Corp.; (ID = 289429) Radio

304 'Pixie' ; Jewel Radio Corp.; (ID = 957182) Radio

304 'Pixie' ; Jewel Radio Corp.; (ID = 957183) Radio

304 'Pixie' ; Jewel Radio Corp.; (ID = 957184) Radio

304 'Pixie' ; Jewel Radio Corp.; (ID = 957185) Radio
304 'Pixie' ; Jewel Radio Corp.; (ID = 2149547) Radio 304 'Pixie' ; Jewel Radio Corp.; (ID = 322210) Radio
304 'Pixie' ; Jewel Radio Corp.; (ID = 322211) Radio 304 'Pixie' ; Jewel Radio Corp.; (ID = 289493) Radio
304 'Pixie' ; Jewel Radio Corp.; (ID = 289494) Radio 304 'Pixie' ; Jewel Radio Corp.; (ID = 322212) Radio
304 'Pixie' ; Jewel Radio Corp.; (ID = 322213) Radio 304 'Pixie' ; Jewel Radio Corp.; (ID = 730189) Radio
304 'Pixie' ; Jewel Radio Corp.; (ID = 957181) Radio 304 'Pixie' ; Jewel Radio Corp.; (ID = 2041212) Radio
Use red slider bar for more.
304 'Pixie' ; Jewel Radio Corp.; (ID = 2149547) Radio
Jewel Radio Corp.;: 304 "Pixie" [Radio] ID = 2149547 1400x1319
Select picture or schematic to display from thumbnails on the right and click for download.
For model 304 'Pixie', Jewel Radio Corp.; New York, Long Island City, NY and East Newark, NJ

Country:  United States of America (USA)
Manufacturer / Brand:  Jewel Radio Corp.; New York, Long Island City, NY and East Newark, NJ
Year: 1948 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: 1R5 1T4 1S5 3S4
Main principle Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 1.5 & 67.5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8.5 cm = 3.3 inch
Power out
from Radiomuseum.org Model: 304 "Pixie" - Jewel Radio Corp.; New York,
Material Leather / canvas / plastic - over other material
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 165 x 120 x 120 mm / 6.5 x 4.7 x 4.7 inch
Notes

Jewel Radio model 304 "Pixie" is a dry battery operated portable broadcast band receiver. Built-in antenna.

Net weight (2.2 lb = 1 kg) 1.650 kg / 3 lb 10.1 oz (3.634 lb)
External source of data Ernst Erb
Source of data Collector's Guide to Antique Radios 4. Edition
Circuit diagram reference Rider's Perpetual, Volume 19 = 1949 and before
Mentioned in The Radio Collector's Directory and Price Guide 1921 - 1965

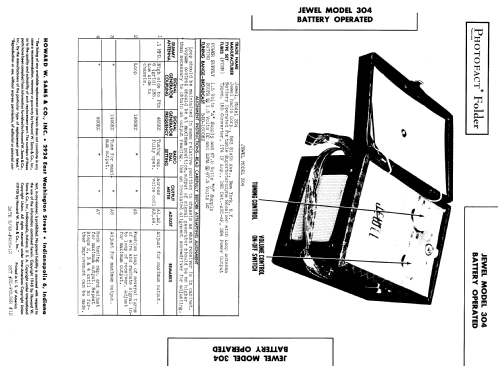

Literature/Schematics (4) Photofact Folder, Howard W. SAMS (Set 35, Date 3/48, Folder 485-12)


All listed radios etc. from Jewel Radio Corp.; New York, Long Island City, NY and East Newark, NJ
Here you find 103 models, 62 with images and 64 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.





rmXorg
