• Year
  • 1946
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 183285

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 4
  • Main principle
  • Superheterodyne (common); ZF/IF 456 kHz; 2 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • AC/DC-set / 117 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4.75 inch = 12.1 cm
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Jewel 505C - Jewel Radio Corp.; New York,
  • Shape
  • Miscellaneous shapes - described under notes.
  • Notes

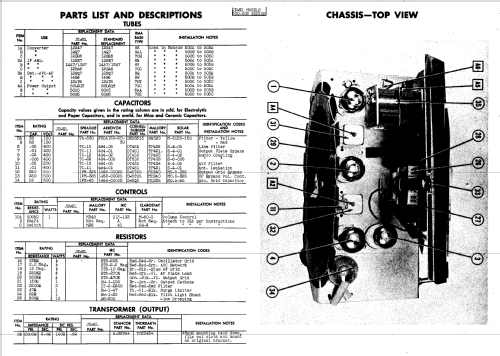

  • The SAMS Photofact folder 3/47, 475-14 shows the same schematic for the models 500A, 500B, 500C, 501A, 501B, 501C, 502A, 502B, 502C, 503A, 503B, 503C, 504A, 504B, 504C, 505A, 505B, 505C. The letter suffix tells us the tubes: A = 12SA7 (Converter), 12SK7 (IF Amp.), 12SQ7 (Det.-AVC-AF) and 50L6GT (power output). B = 14Q7, 14A7 or 12B7, 14B6 and 50A5 and C = 12BE6, 12BA6, 12AT6 and 50B5. The last number indicates the cabinet. We can be sure of the model 501, 502 and 504, because they are shown on the Photofact sheet. We are not sure about the 505 "Pin-up" clock radio - but they are listed - without a trace for a clock.
  • Author
  • Model page created by Ernst Erb. See "Data change" for further contributors.
