• Country
• Germany

• Manufacturer / Brand
• Jotha-Radio, El.-App.-Fabrik Jochen Hüngerle KG (Huengerle); Königsfeld/Schww.

• Year
• 1949/1950

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 15159

• • alternative name: Elektro-Apparate-Fabrik
  • Brand: EAF

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 3

• Valves / Tubes
• UCH11 UCL11 UY11

• Main principle
• Superheterodyne (common); ZF/IF 473 kHz; Super, reaction, but not adjustable

• Tuned circuits
• 4 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• AC/DC-set / 110/220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org

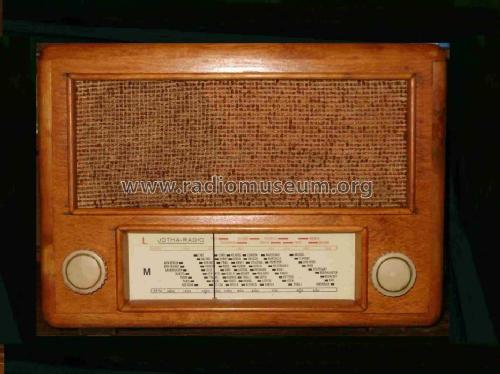

• Model: Zaubergeige H 439GW [Holz] - Jotha-Radio, El.-App.-Fabrik

• Shape
• Tablemodel, low profile (big size).

• Price in first year of sale
• 208.00 DM

• External source of data
• E. Erb 3-907007-36-0

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Circuit diagram reference
• Lange-Nowisch
