- Country
- France
- Manufacturer / Brand
- Jupiter-Radio - voir aussi Éts A. Jeannin; Paris, Saint-Maur
- Year
- 1936
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 63042

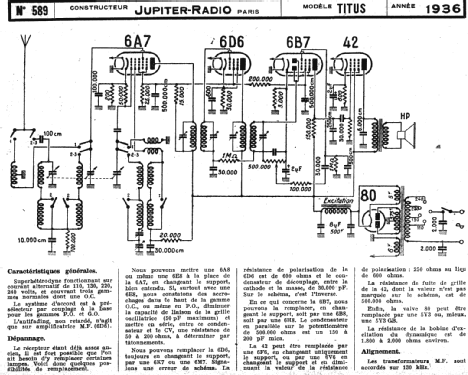

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 130 kHz; 2 AF stage(s)
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 110; 130; 220; 240 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- from Radiomuseum.org
- Model: Titus - Jupiter-Radio - voir aussi Éts
- Notes
-
En cas de sélection des Ondes Courtes, il y a seulement 6 circuits accordés au lieu de 7.
- External source of data
- Serge Laffont/Martin Renoth
