For model 150, Jura; La Chaux-de-Fonds (eigentlich Zürich)

Country:  Switzerland
Manufacturer / Brand:  Jura; La Chaux-de-Fonds (eigentlich Zürich)
Year: 1940/1941 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: EF8 ECH3 EBF2 EF9 EM4 EL3 AZ1
Main principle Superhet with RF-stage; ZF/IF 452 kHz
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Alternating Current supply (AC) / 110;125;145;200;220;245 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: 150 - Jura; La Chaux-de-Fonds
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 580 x 320 x 250 mm / 22.8 x 12.6 x 9.8 inch

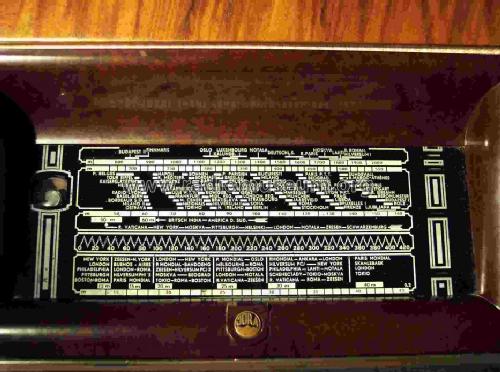

Notes Sch=900X; Interesting stations mentioned on the dial, such as Tour Eiffel and British India.
Net weight (2.2 lb = 1 kg) 10.4 kg / 22 lb 14.5 oz (22.907 lb)
External source of data E. Erb 3-907007-36-0
Source of data - - Data from my own collection / Radiokatalog Band 2, Ernst Erb
Circuit diagram reference Die Tungsram-Tabellen führen das Modell auf.
