For model 93A, Jura; La Chaux-de-Fonds (eigentlich Zürich)

Country:  Switzerland
Manufacturer / Brand:  Jura; La Chaux-de-Fonds (eigentlich Zürich)
Year: 1939/1940 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: ECH3 EF9 EBL1 AZ1
Main principle Super-Heterodyne (Super in general); ZF/IF 128 kHz; 1 AF stage(s)
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 145; 200; 220; 240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 17 cm = 6.7 inch
Power out
from Radiomuseum.org Model: 93A - Jura; La Chaux-de-Fonds
Material Bakelite case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 505 x 285 x 170 mm / 19.9 x 11.2 x 6.7 inch
Net weight (2.2 lb = 1 kg) 8.3 kg / 18 lb 4.5 oz (18.282 lb)
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb

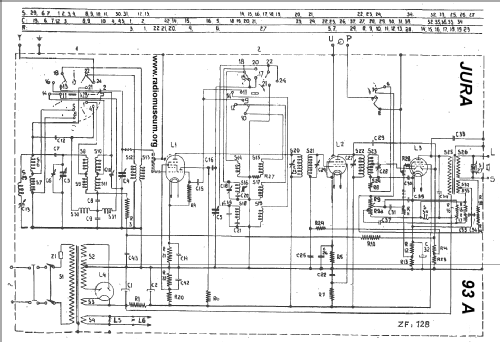

Circuit diagram reference Thali-Schemasammlung und Tungsram-Röhrenbestückung.
