For model J210U, Jura; La Chaux-de-Fonds (eigentlich Zürich):

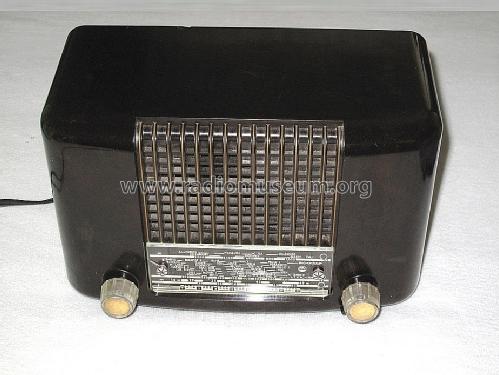

CH_Jura_type J 210 U_vue de face_coll. William FAGUE

Country:  Switzerland
Manufacturer / Brand:  Jura; La Chaux-de-Fonds (eigentlich Zürich)
Year: 1950 ? Category: Broadcast Receiver - or past WW2 Tuner

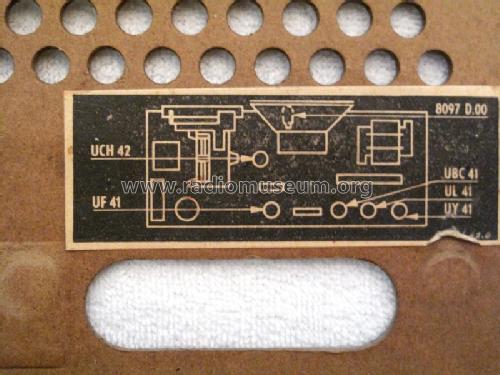

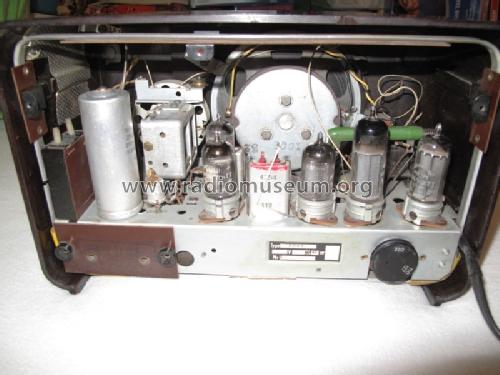

Valves / Tubes 5: UCH42 UF41 UBC41 UL41 UY41
Main principle Superheterodyne (common); ZF/IF 452 kHz
Wave bands Broadcast, Long Wave and Short Wave.
Details

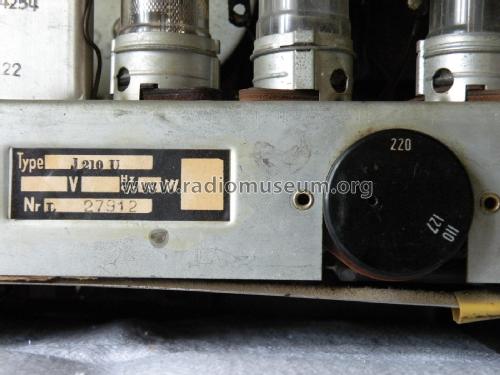

Power type and voltage AC/DC-set / 110-127; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 11 cm = 4.3 inch
Power out
from Radiomuseum.org Model: J210U - Jura; La Chaux-de-Fonds
Material Bakelite case
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 285 x 160 x 180 mm / 11.2 x 6.3 x 7.1 inch
Notes

Siehe auch:  Philips BX210U.

Net weight (2.2 lb = 1 kg) 2.5 kg / 5 lb 8.1 oz (5.507 lb)

Model page created by Andreas Echtner. See "Data change" for further contributors.
