Victor 5AW-1 Reimei

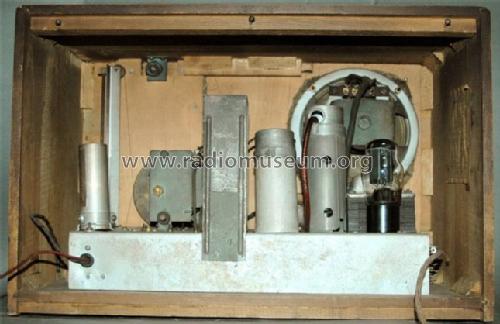

Victor 5AW-1 Reimei; JVC - Victor Company (ID = 735969) Radio Victor 5AW-1 Reimei; JVC - Victor Company (ID = 735970) Radio
Use red slider bar for more.
Victor 5AW-1 Reimei; JVC - Victor Company (ID = 735969) Radio
JVC - Victor Company: Victor 5AW-1 Reimei [Radio] ID = 735969 600x450
Select picture or schematic to display from thumbnails on the right and click for download.
For model Victor 5AW-1 Reimei, JVC - Victor Company of Japan, Ltd.; Tokyo:
Front view of Victor 5AW-1

Country:  Japan
Manufacturer / Brand:  JVC - Victor Company of Japan, Ltd.; Tokyo
Year: 1946 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 6A7 6D6 75 42 80
Main principle Superheterodyne (common); ZF/IF 453 kHz
Wave bands Broadcast plus more than 2 Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 100 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 6.5 inch = 16.5 cm
Power out
from Radiomuseum.org Model: Victor 5AW-1 Reimei - JVC - Victor Company of Japan,
Material Wooden case
Dimensions (WHD) 480 x 363 x 235 mm / 18.9 x 14.3 x 9.3 inch
Notes This model was first released all wave set of Victor after the war. The name "Reimei" means "dawn". This name was expression of engineer's hope to new era. This set used 6A7 to converter. This was rare case. The quality of Japanese 6A7 was poor to use short wave band. Victor Co., of Japan was subsidiary of Toshiba that was biggest tube manufacturer in Japan. And the factory of Victor placed near by the factory of Toshiba. They probably could get high quality tubes. Short wave band from 4 to 22Mc was separated to 4 bands to realize easy tuning. They called "band spread". RCA Victor used such design in early 1940's. Victor Co., of Japan was subsidiary of RCA Victor until 1939. They probably knew such design from RCA.
Source of data -- = frühere Type mit ähnl. Charakteristik - darum Mod. teilw. früher.
Literature/Schematics (1) The Denpa Kagaku (Radio Technic & Science) 01/1947 published by Nippon Housou Shuppan Kyokai

Model page created by Tadanobu Okabe. See "Data change" for further contributors.
