Videosphere 3240 GM (European Version)

Videosphere 3240 GM; JVC - Victor Company (ID = 1675454) Television

Videosphere 3240 GM; JVC - Victor Company (ID = 1675455) Television
Videosphere 3240 GM; JVC - Victor Company (ID = 1645115) Television Videosphere 3240 GM; JVC - Victor Company (ID = 1051008) Television
Videosphere 3240 GM; JVC - Victor Company (ID = 1051011) Television Videosphere 3240 GM; JVC - Victor Company (ID = 1051012) Television
Videosphere 3240 GM; JVC - Victor Company (ID = 1051009) Television Videosphere 3240 GM; JVC - Victor Company (ID = 1051013) Television
Videosphere 3240 GM; JVC - Victor Company (ID = 1051014) Television Videosphere 3240 GM; JVC - Victor Company (ID = 1343058) Television
Videosphere 3240 GM; JVC - Victor Company (ID = 1343065) Television Videosphere 3240 GM; JVC - Victor Company (ID = 1051010) Television
Use red slider bar for more.

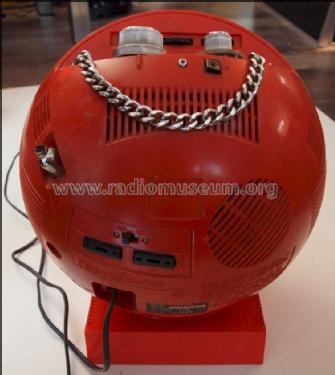

Videosphere 3240 GM; JVC - Victor Company (ID = 1645115) Television
JVC - Victor Company: Videosphere 3240 GM [Television] ID = 1645115 827x1041
Select picture or schematic to display from thumbnails on the right and click for download.
For model Videosphere 3240 GM (European Version), JVC - Victor Company of Japan, Ltd.; Yokohama

Country:  Japan
Manufacturer / Brand:  JVC - Victor Company of Japan, Ltd.; Yokohama
Year: 1970 ?? Category: Television Receiver (TV) or Monitor
Valves / Tubes 1: 230ACB4
Semiconductors (the count is only for transistors) 26: 2SC606 2SC288 2SC605 2SC1159 2SC682 2SC717 2SC454 2SC856 2SA351 2SC458 2SC1213 2SA673 2SA15 2SB176 2SB341 2SC681 2SB337
Main principle Super-Heterodyne (Super in general); ZF/IF 38900/5500 kHz; 2 AF stage(s)
Wave bands VHF incl. FM and/or UHF (see notes for details)
Details
Power type and voltage Line plus power jack, mostly with battery or storage battery / 220/ 12 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7.6 cm = 3 inch
Power out
from Radiomuseum.org Model: Videosphere 3240 GM - JVC - Victor Company of Japan,
Material Modern plastics (no Bakelite or Catalin)
Shape Design Radio or Novelty / Gadget - fancy or unusual shape.
Dimensions (WHD) 280 x 320 x 280 mm / 11 x 12.6 x 11 inch
Notes

Portabler SW TV Nivico 3240GM, in Kugelform D=28cm mit VHF & UHF Tuner.
VHF kann mit eingebautem Umschalter zwischen externem Antennenanschluss oder interner Stabantenne betrieben werden.
Antennenanschluss - Flachstecker (VHF = waagrecht-flach, UHF = senkrecht-flach), vorhanden.
Kopfhöreranschluss (3.5mm Klinke).

Transistoren nur  1x pro Typ gelistet.

JVC Nivico 3240GM Videosphere;
Designer b/w TV with CCIR B/G standard VHF turret & UHF dial tuner, int. or ext. antenna in, earphones jack, 21/11 W, swivel base.
Add the cabinet color at price uploads!

Net weight (2.2 lb = 1 kg) 5.5 kg / 12 lb 1.8 oz (12.115 lb)
