For model Channel Strip Module 10EA-71, Kajaani Elaktroniikka; Kajaani:

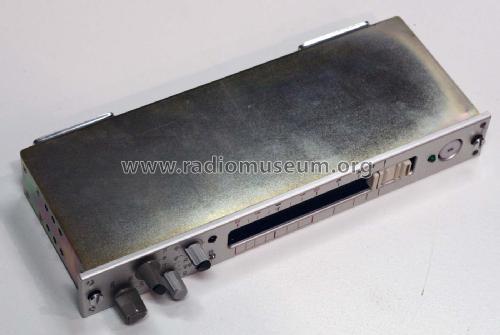

Kajaani 10EA-71 channel strip module, front panel

Country:  Finland
Manufacturer / Brand:  Kajaani Elaktroniikka; Kajaani
Year: 1978–1985 ? Category: Audio Amplifier or -mixer
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Powered by external power supply or a main unit. / +15 & -15 & -24 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Channel Strip Module 10EA-71 - Kajaani Elaktroniikka; Kajaani
Material Metal case
Shape Chassis only or for «building in»
Dimensions (WHD) 40 x 282 x 130 mm / 1.6 x 11.1 x 5.1 inch
Notes

Channel strip (microphone/line input amplifier, channel fader, overload indicator) for Kajaani 10EA- series mixing consoles.

Mentioned in - - Manufacturers Literature (training manual)

Model page created by Matti Adolfsen. See "Data change" for further contributors.
