Phase oscilloscope 10EA-20

Phase oscilloscope 10EA-20; Kajaani (ID = 2010538) Misc

Phase oscilloscope 10EA-20; Kajaani (ID = 2010669) Misc

Phase oscilloscope 10EA-20; Kajaani (ID = 2010670) Misc

Phase oscilloscope 10EA-20; Kajaani (ID = 2010671) Misc

Phase oscilloscope 10EA-20; Kajaani (ID = 2010672) Misc

Phase oscilloscope 10EA-20; Kajaani (ID = 2010673) Misc

Phase oscilloscope 10EA-20; Kajaani (ID = 2010674) Misc
Phase oscilloscope 10EA-20; Kajaani (ID = 2010539) Misc Phase oscilloscope 10EA-20; Kajaani (ID = 2010675) Misc
Use red slider bar for more.
Phase oscilloscope 10EA-20; Kajaani (ID = 2010539) Misc
Kajaani: Phase oscilloscope 10EA-20 [Misc] ID = 2010539 1400x1875
Select picture or schematic to display from thumbnails on the right and click for download.
For model Phase oscilloscope 10EA-20, Kajaani Elaktroniikka; Kajaani:
Kajaani 10EA-20 phase oscilloscope with optional wooden case.

Country:  Finland
Manufacturer / Brand:  Kajaani Elaktroniikka; Kajaani
Year: 1977–1985 Category: Miscellaneous (Other, Various) - see notes
Valves / Tubes 1: DG7-52A
Semiconductors (the count is only for transistors) 32:
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Phase oscilloscope 10EA-20 - Kajaani Elaktroniikka; Kajaani
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 121 x 190 x 190 mm / 4.8 x 7.5 x 7.5 inch
Notes

Phase oscilloscope 10EA- 20

10EA- series mixing desks all have this phase oscilloscope installed. The module was also available in a wooden case to be used with other desks (e.g. Kajaani 34 EA series outdoor broadcast consoles).

Net weight (2.2 lb = 1 kg) 3.2 kg / 7 lb 0.8 oz (7.048 lb)

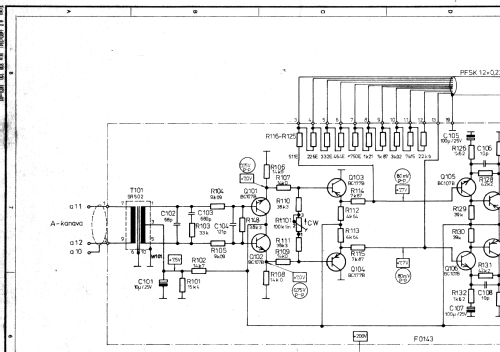

Literature/Schematics (1) - - Manufacturers Literature (complete product document binder)
