• Year
  • 1972
  • Category
  • Citizen Band Equipment
  • Radiomuseum.org ID
  • 171231

 Technical Specifications

  • Number of Transistors
  • 14
  • Semiconductors
  • Main principle
  • Transceiver; ZF/IF 455 kHz
  • Wave bands
  • Short Wave (SW only)
  • Power type and voltage
  • Batteries / addl. power jack / 13,8 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6.7 cm = 2.6 inch
  • Power out
  • 0.4 W (unknown quality)
  • Material
  • Metal case
  • from Radiomuseum.org

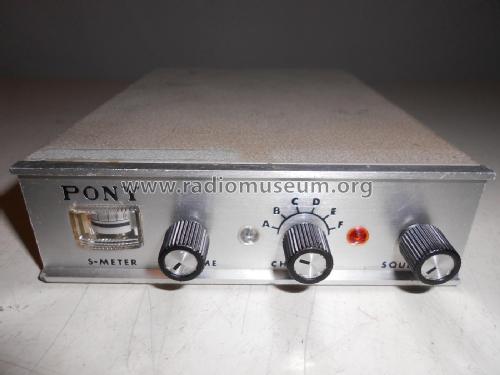

  • Model: Pony CB-74 - Kanda Tsushin Kogyo Co., LTD.;
  • Shape
  • Tablemodel without push buttons, Mantel/Midget/Compact up to 14
  • Dimensions (WHD)
  • 120 x 35 x 160 mm / 4.7 x 1.4 x 6.3 inch
  • Notes
  • CB band, 6 Xtal driven channels,
  • Net weight (2.2 lb = 1 kg)
  • 1.2 kg / 2 lb 10.3 oz (2.643 lb)
  • Literature/Schematics (1)
  • Mag. CQ Elettronica (Italy) 01/1973
  • Author
  • Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.

 Collections | Museums | Literature

Collections

The model Pony is part of the collections of the following members.

 Forum

Forum contributions about this model: Kanda Tsushin Kogyo: Pony CB-74

Threads: 1 | Posts: 1

The Pony CB-74 CB transceiver is identical to the Fieldmaster TR-16M CB radio. Both radios are 4 watts (not 0.4 watts RF as erroneously stated at the Pony CB-74 page).  The Pony CB-74 is also almost identical to the Sommerkamp TS-727G. The only difference is that the Sommerkamp is limited to 2 watts (to meet the German CB regulations at the time) where the Pony and the Fieldmaster are 4 watt (FCC) radios. The Sommerkamp has a trim potentiometer added to the insides (R56, 1 kilo ohm) to limit the RF power, which is not there for the Pony and the Fieldmaster. So if you need the diagram for the CB-74, just download the Sommerkamp TS-727G manual (easily found on the Internet) and assume a wire jumper in the place of R56. The rest is identical.

Last but not least, the Pony CB-72 diagram (also easily found on the Intertnet) is identical to the Pony CB-74. The only difference is that the CB-72 has a combined speaker/microphone unit on the cord, whenre the CB-74 has the traditional setup (speaker in the radio, microphone on the cord).

Loek d'Hont, 25.Aug.20
