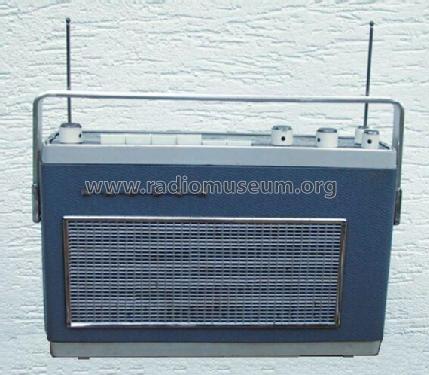

Coeur ; Kapsch & Söhne KS, (ID = 72031) Radio Coeur ; Kapsch & Söhne KS, (ID = 314511) Radio
Coeur ; Kapsch & Söhne KS, (ID = 1011768) Radio Coeur ; Kapsch & Söhne KS, (ID = 1917396) Radio
Coeur ; Kapsch & Söhne KS, (ID = 2003856) Radio Coeur ; Kapsch & Söhne KS, (ID = 2003857) Radio
Use red slider bar for more.
Coeur ; Kapsch & Söhne KS, (ID = 314509) Radio
Kapsch & Söhne KS,: Coeur [Radio] ID = 314509 796x610
Select picture or schematic to display from thumbnails on the right and click for download.
For model Coeur, Kapsch & Söhne (KS), Telephon- und Telegraphenfabriks-AG; Wien:
Kapsch Coeur

Country:  Austria
Manufacturer / Brand:  Kapsch & Söhne (KS), Telephon- und Telegraphenfabriks-AG; Wien
Year: 1967/1968 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 10: AF106 AF125 AF126 AF126 AF126 AF126 AC126 AC126 AC128 AC128
Main principle Superheterodyne (common); ZF/IF 480/10700 kHz
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Dry Batteries / 6 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Coeur - Kapsch & Söhne KS, Telephon-
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 292 x 182 x 78 mm / 11.5 x 7.2 x 3.1 inch
Notes
  • kann mit der Autohalterung RZ21609 als Autoradio verwendet werden
  • Betrieb: Batterie 6 V und Auto 6/12 V.
  • Anschlüsse: Antenneneingang, externer Lautsprecher.
Price in first year of sale 1'995.00 ATS
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
Mentioned in RADIOBOTE, Österr. (Heft 68/2017, S.13 ff, Gerätebeschreibung)
Literature/Schematics (1) Museums Bote, Österr. (Heft 126/2004, S.6, Kurzbeschreibung)
Literature/Schematics (2) -- Original-techn. papers.
