Year: 1938/1939 | Category: Broadcast Receiver - or past WW2 Tuner | ||||
Valves / Tubes | 2: VCL11 VY2 |
---|
Main principle | TRF with regeneration; 1 AF stage(s) |
---|---|
Tuned circuits | 1 AM circuit(s) |
Wave bands | Broadcast (MW) and Long Wave. |
Details | |
Power type and voltage | AC/DC-set / 110-240 Volt |
Loudspeaker | Magnetic loudspeaker (reed) of high quality (free mooving - only possible past 1931). |
Power out | |

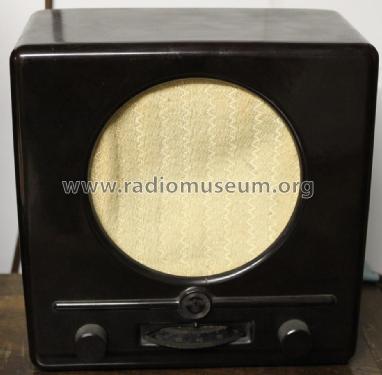

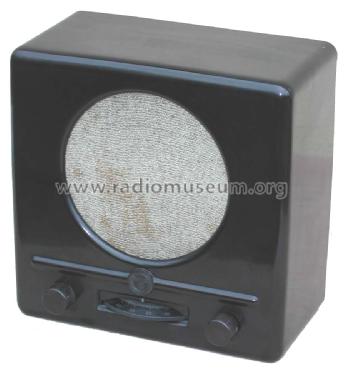

from Radiomuseum.org | Model: Deutscher Kleinempfänger 1938 DKE 38 - Kapsch & Söhne KS, Telephon- |
Material | Bakelite case |
Shape | Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only). |
Dimensions (WHD) | 240 x 240 x 120 mm / 9.4 x 9.4 x 4.7 inch |
Notes | Spitzname = Goebbelsschnauze (Goebbels musste man daraus öfters hören!) Siehe auch Deutschland. Normalerweise nur unter Gemeinschaftserzeugnisse geführt. |
Collectors' prices | |
External source of data | E. Erb 3-907007-36-0 |
Source of data | Radiokatalog Band 2, Ernst Erb |
All listed radios etc. from Kapsch & Söhne (KS), Telephon- und Telegraphenfabriks-AG; Wien
Here you find 605 models, 497 with images and 369 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
Hits: 1809 Replies: 0
kapsch: DKE38;
|
|
Michael Krämer
01.Jun.04 |
1
Hallo Sammlerkollegen,
Ich habe in Ebay bzgl. eines DKE 38 gelesen: "Lautsprecher nachjustiert". Das habe ich noch nie gehört, dass man den Lautsprecher vom DKE nachjustieren kann. Mein DKE schrebbelt etwas, ist eine solche nachjustierung evtl. nötig ?? Oder woran kann es liegen dass der Ton nicht klar herauskommt ?
Gruss,Michael |
Hits: 1215 Replies: 0
... über das DKE- Netzteil und die VY2 finden Sie unter :
|
|
Jacob Roschy
16.Nov.03 |
1
http://www.radiomuseum.org/dsp_forum_post.cfm?thread_id=11446 |
