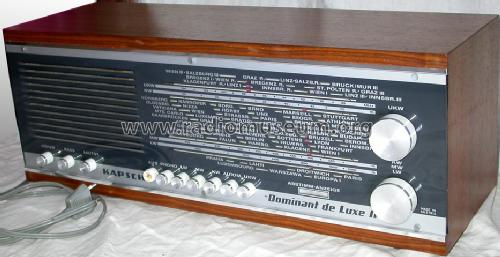

Kapsch & Söhne KS,: Dominant de Luxe II [Radio] ID = 175786 933x481
Select picture or schematic to display from thumbnails on the right and click for download.
For model Dominant de Luxe II (2), Kapsch & Söhne (KS), Telephon- und Telegraphenfabriks-AG; Wien

Country:  Austria
Manufacturer / Brand:  Kapsch & Söhne (KS), Telephon- und Telegraphenfabriks-AG; Wien
Year: 1969 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: ECH81 EAF801 ECL86 EM87
Semiconductors (the count is only for transistors) 2: AF106 AF125
Main principle Superheterodyne (common); ZF/IF 480/10700 kHz
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 220-240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: Dominant de Luxe II - Kapsch & Söhne KS, Telephon-
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 520 x 200 x 177 mm / 20.5 x 7.9 x 7 inch
Notes Ovallautsprecher 13 x 18 cm.
Net weight (2.2 lb = 1 kg) 5.5 kg / 12 lb 1.8 oz (12.115 lb)
Price in first year of sale 2'190.00 ATS
Source of data Radiokatalog Band 2, Ernst Erb
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Wolfgang Bauer. See "Data change" for further contributors.
