Dominant KML-J

Dominant KML-J; Kapsch & Söhne KS, (ID = 164169) Radio Dominant KML-J; Kapsch & Söhne KS, (ID = 164171) Radio
Use red slider bar for more.

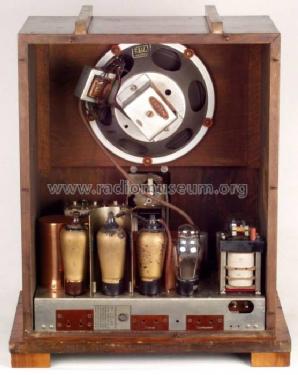

Dominant KML-J; Kapsch & Söhne KS, (ID = 164169) Radio
Kapsch & Söhne KS,: Dominant KML-J [Radio] ID = 164169 573x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Dominant KML-J, Kapsch & Söhne (KS), Telephon- und Telegraphenfabriks-AG; Wien

Country:  Austria
Manufacturer / Brand:  Kapsch & Söhne (KS), Telephon- und Telegraphenfabriks-AG; Wien
Year: 1934 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: E446 E447 E444 E443H 506
Main principle Super-Heterodyne (Super in general)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-220 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Dominant KML-J - Kapsch & Söhne KS, Telephon-
Material Wooden case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Dimensions (WHD) 452 x 547 x 287 mm / 17.8 x 21.5 x 11.3 inch
Notes Gerät mit Feldstärkeanzeigeinstrument.
Mentioned in Museums Bote (Museumsbote) (108?)

Model page created by Bernhard Beier. See "Data change" for further contributors.



All listed radios etc. from Kapsch & Söhne (KS), Telephon- und Telegraphenfabriks-AG; Wien
Here you find 604 models, 494 with images and 369 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
