For model Bezirksempfänger Harmonie (L) Wechselstrom, Kapsch & Söhne (KS), Telephon- und Telegraphenfabriks-AG; Wien:
Kapsch Harmonie LW

Country:  Austria
Manufacturer / Brand:  Kapsch & Söhne (KS), Telephon- und Telegraphenfabriks-AG; Wien
Year: 1932/1933 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 3: NS4 M43 GL1/4D
Main principle TRF without regeneration
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 120; 150; 220 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Bezirksempfänger Harmonie Wechselstrom - Kapsch & Söhne KS, Telephon-
Material Wooden case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb

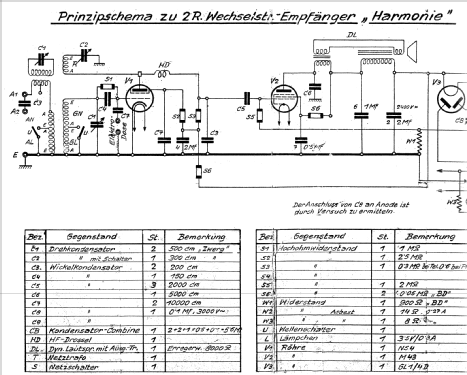

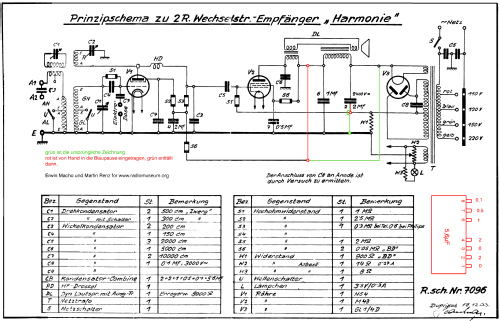

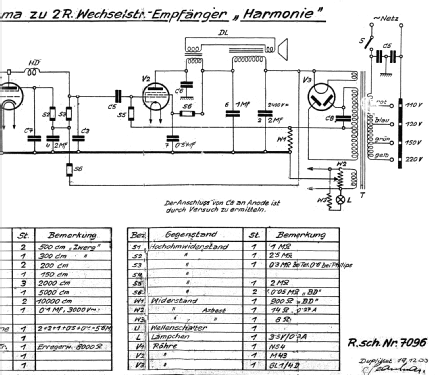

Literature/Schematics (1) -- Original-techn. papers.


All listed radios etc. from Kapsch & Söhne (KS), Telephon- und Telegraphenfabriks-AG; Wien
Here you find 606 models, 498 with images and 374 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
