• Country
• Austria

• Manufacturer / Brand
• Kapsch & Söhne (KS), Telephon- und Telegraphenfabriks-AG; Wien

• Year
• 1968/1969 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 219945

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 52

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Wooden case

• from Radiomuseum.org

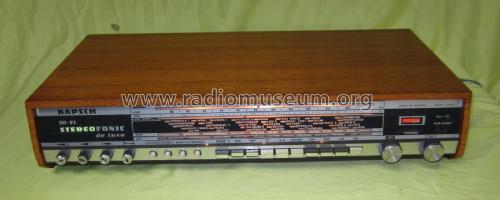

• Model: Hi-Fi Stereofonic de Luxe - Kapsch & Söhne KS, Telephon-

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 585 x 280 x 110 mm / 23 x 11 x 4.3 inch

• Notes
• • Ausgangsleistung 2 × 25 Watt Sinus.
  • wichtige Bauteile:
    • Skalenbeleuchtung: 20V 0,1A
    • Silizium Brückengleichrichter B40C600

• Net weight (2.2 lb = 1 kg)
• 7.5 kg / 16 lb 8.3 oz (16.52 lb)

• Source of data
• -- Original-techn. papers.

• Author
• Model page created by Wolfgang Bauer. See "Data change" for further contributors.
