Musette

• Country
• Austria

• Manufacturer / Brand
• Kapsch & Söhne (KS), Telephon- und Telegraphenfabriks-AG; Wien

• Year
• 1965/1966

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 9557

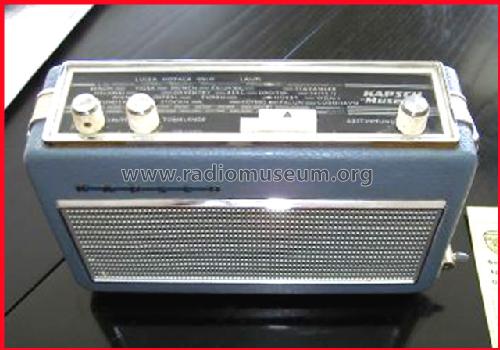

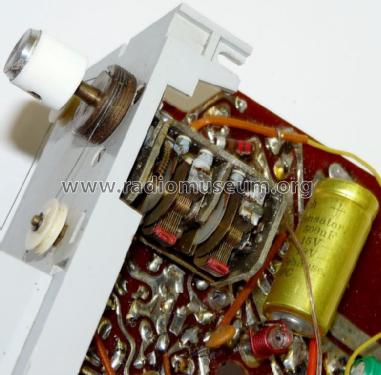

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 9

• Semiconductors
• SFT358 SFT357 SFT316 SFT316 SFT316 SFT353 SFT353 SFT367 SFT377 BA102 SFD107 1N542

• Main principle
• Superheterodyne (common); ZF/IF 480/10700 kHz

• Tuned circuits
• 5 AM circuit(s)     9 FM circuit(s)

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Power type and voltage
• Dry Batteries / 2 x 4,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org
• Model: Musette - Kapsch & Söhne KS, Telephon-

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 224 x 140 x 64 mm / 8.8 x 5.5 x 2.5 inch

• Notes
• • Änderung der Schaltung während der Produktion, siehe Schaltpläne.
    •   17 geänderte; 5 neue; 4 entfallene Bauteile

• Net weight (2.2 lb = 1 kg)
• 1.2 kg / 2 lb 10.3 oz (2.643 lb)

• Price in first year of sale
• 1,295.00 ATS

• External source of data
• E. Erb 3-907007-36-0

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Mentioned in
• Museums Bote, Österr. (Heft 126/2004, S.5, Kurzbeschreibung)
