Dreiröhren-Empfänger Selektophon 3 (SP3) Katalog Nr. 10056

Dreiröhren-Empfänger Selektophon 3 Katalog Nr. 10056; Kapsch & Söhne KS, (ID = 39337) Radio
Dreiröhren-Empfänger Selektophon 3 Katalog Nr. 10056; Kapsch & Söhne KS, (ID = 210849) Radio Dreiröhren-Empfänger Selektophon 3 Katalog Nr. 10056; Kapsch & Söhne KS, (ID = 2094872) Radio
Use red slider bar for more.
Dreiröhren-Empfänger Selektophon 3 Katalog Nr. 10056; Kapsch & Söhne KS, (ID = 210849) Radio

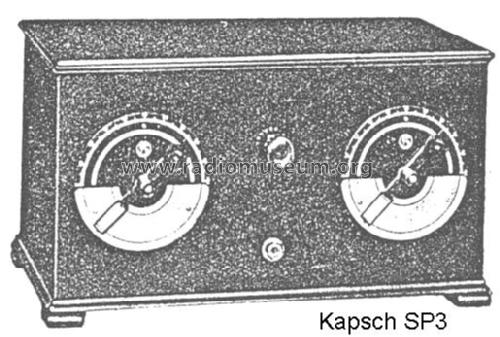

Kapsch & Söhne KS,: Dreiröhren-Empfänger Selektophon 3 Katalog Nr. 10056 [Radio] ID = 210849 515x348
Select picture or schematic to display from thumbnails on the right and click for download.
For model Dreiröhren-Empfänger Selektophon 3 (SP3) Katalog Nr. 10056, Kapsch & Söhne (KS), Telephon- und Telegraphenfabriks-AG; Wien:
Kapsch Selectophon SP3

Country:  Austria
Manufacturer / Brand:  Kapsch & Söhne (KS), Telephon- und Telegraphenfabriks-AG; Wien
Year: 1926/1927 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 3:
Main principle TRF without regeneration
Wave bands Broadcast only (MW).
Details
Power type and voltage Storage and/or dry batteries
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Dreiröhren-Empfänger Selektophon 3 Katalog Nr. 10056 - Kapsch & Söhne KS, Telephon-
Material Wooden case
Shape Tablemodel, Box - most often with Lid (NOT slant panel).
Notes [575-291; MB0002B]: Ende 1926 = 3- bis 7-Röhrenempfänger im Programm
Net weight (2.2 lb = 1 kg) 4.4 kg / 9 lb 11.1 oz (9.692 lb)
Price in first year of sale 250.00 ATS
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
