For model Selektophon SP4, Kapsch & Söhne (KS), Telephon- und Telegraphenfabriks-AG; Wien:
Kapsch Selectophon SP 4

Country:  Austria

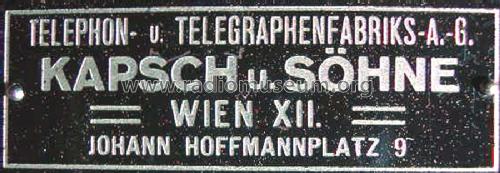

Manufacturer / Brand:  Kapsch & Söhne (KS), Telephon- und Telegraphenfabriks-AG; Wien
Year: 1926/1927 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: A409 A425 B406 B406
Main principle TRF without regeneration
Wave bands Broadcast only (MW).
Details
Power type and voltage Storage and/or dry batteries
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Selektophon SP4 - Kapsch & Söhne KS, Telephon-
Material Wooden case
Shape Tablemodel, Box - most often with Lid (NOT slant panel).
Dimensions (WHD) 460 x 230 x 215 mm / 18.1 x 9.1 x 8.5 inch
Notes 200-600m [MB0002B] Um Batterie zu sparen kann das Gerät mit einer B406 betrieben werden. (Kopfhörer)
Net weight (2.2 lb = 1 kg) 5.4 kg / 11 lb 14.3 oz (11.894 lb)
Price in first year of sale 320.00 ATS
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
