• Year
  • 1969 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 79513

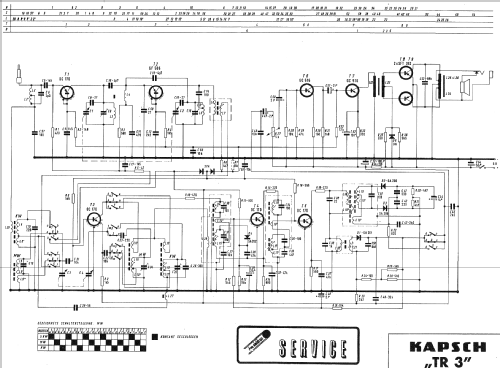

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 9
  • Main principle
  • Superheterodyne (common); ZF/IF 455/10700 kHz
  • Wave bands
  • Broadcast, Short Wave plus FM or UHF.
  • Power type and voltage
  • Dry Batteries / R10: 2 x 3 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical / Ø 6.5 cm = 2.6 inch
  • Power out
  • 0.2 W (undistorted)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: TR3 - Kapsch & Söhne KS, Telephon-
  • Shape
  • Very small Portable or Pocket-Set (Handheld) < 8 inch.
  • Dimensions (WHD)
  • 185 x 102 x 38 mm / 7.3 x 4 x 1.5 inch
  • Notes
  • The model was produced in Czechoslovakia, by Tesla, as an export model of Tesla 2816B Dolly.

    Kopfhöreranschluß

  • Net weight (2.2 lb = 1 kg)
  • 0.6 kg / 1 lb 5.1 oz (1.322 lb)
  • Price in first year of sale
  • 890.00 ATS
  • Source of data
  • Radiokatalog Band 2, Ernst Erb

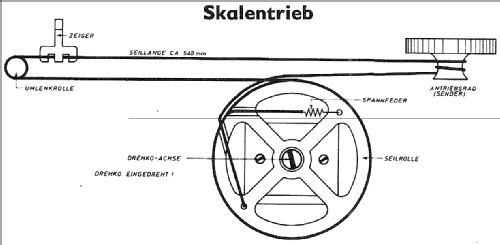

  • Literature/Schematics (1)
  • -- Original-techn. papers.
  • Author
  • Model page created by Wolfgang Bauer. See "Data change" for further contributors.
