- Country
- Austria
- Manufacturer / Brand
- Kapsch & Söhne (KS), Telephon- und Telegraphenfabriks-AG; Wien
- Year
- 1970/1971
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 9561

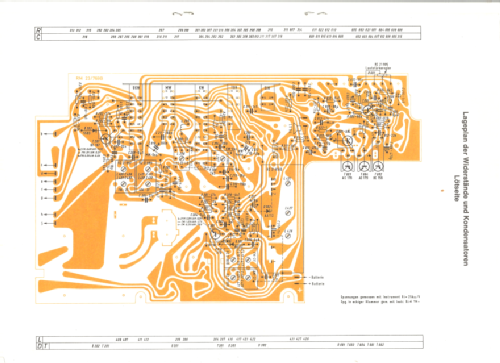

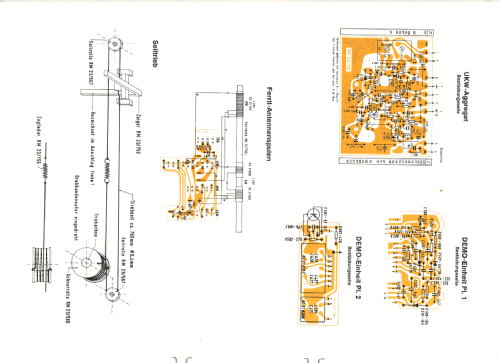

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 10
- Semiconductors
- Main principle
- Superheterodyne (common); ZF/IF 462 kHz; 2 AF stage(s)
- Tuned circuits
- 7 AM circuit(s) 11 FM circuit(s)
- Wave bands
- Broadcast, Short Wave plus FM or UHF.
- Power type and voltage
- Dry Batteries / 2 x 4,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
- Material
- Various materials
- from Radiomuseum.org
- Model: TR5 - Kapsch & Söhne KS, Telephon-
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 280 x 167 x 72 mm / 11 x 6.6 x 2.8 inch
- Notes
-
Trans.; Kunststoff. (grau)
Wurde auch mit Velvetex-Gehäuse = Elektrostatik-Fiber-Finish in verschiedenen Farben angeboten.
- Net weight (2.2 lb = 1 kg)
- 1.5 kg / 3 lb 4.9 oz (3.304 lb)
- Price in first year of sale
- 1,340.00 ATS
- External source of data
- E. Erb 3-907007-36-0
- Source of data
- -- Original-techn. papers. / Radiokatalog Band 2, Ernst Erb
- Mentioned in
- RADIOBOTE, Österr. (Heft 63/2016, S.13 ff, Gerätebeschreibung)
