• Country
• Austria

• Manufacturer / Brand
• Kapsch & Söhne (KS), Telephon- und Telegraphenfabriks-AG; Wien

• Year
• 1971

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 79515

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 11

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Wave bands
• Broadcast, Short Wave plus FM or UHF.

• Power type and voltage
• Line / Batteries (any type) / 220 / 2 x 4,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Special material, described in the notes.

• from Radiomuseum.org

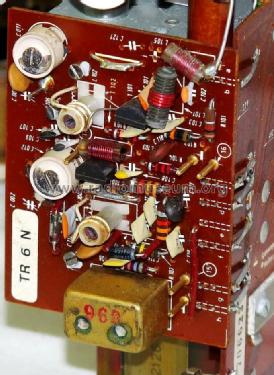

• Model: TR6N - Kapsch & Söhne KS, Telephon-

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 268 x 158 x 71 mm / 10.6 x 6.2 x 2.8 inch

• Notes
• Boden: Hartfaser
  Seitenteile und Rückseite: Thermoplast
  Front: Hartfaser mit Metallblende.

• Net weight (2.2 lb = 1 kg)
• 1.8 kg / 3 lb 15.4 oz (3.965 lb)

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Wolfgang Bauer. See "Data change" for further contributors.
