Triophon 10057

Triophon 10057; Kapsch & Söhne KS, (ID = 266733) Radio Triophon 10057; Kapsch & Söhne KS, (ID = 266734) Radio

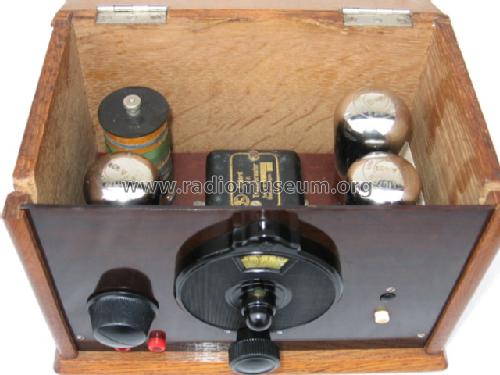

Triophon 10057; Kapsch & Söhne KS, (ID = 266735) Radio Triophon 10057; Kapsch & Söhne KS, (ID = 266736) Radio
Triophon 10057; Kapsch & Söhne KS, (ID = 266737) Radio
Use red slider bar for more.
Triophon 10057; Kapsch & Söhne KS, (ID = 266733) Radio
Kapsch & Söhne KS,: Triophon 10057 [Radio] ID = 266733 640x480
Select picture or schematic to display from thumbnails on the right and click for download.
For model Triophon 10057, Kapsch & Söhne (KS), Telephon- und Telegraphenfabriks-AG; Wien:
Kapsch Triophon 10057

Country:  Austria
Manufacturer / Brand:  Kapsch & Söhne (KS), Telephon- und Telegraphenfabriks-AG; Wien
Year: 1929/1930 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 3: A409 A425 B406
Main principle TRF with regeneration; 2 AF stage(s)
Tuned circuits 1 AM circuit(s)
Details
Power type and voltage Storage and/or dry batteries
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Triophon 10057 - Kapsch & Söhne KS, Telephon-
Material Wooden case
Dimensions (WHD) 240 x 158 x 165 mm / 9.4 x 6.2 x 6.5 inch
Notes Rückgekoppeltes Audion mit Zweifachverstärkung. [MB0003B]
Net weight (2.2 lb = 1 kg) 1.935 kg / 4 lb 4.2 oz (4.262 lb)
Price in first year of sale 98.00 öS
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
