For model Troubadour Phono, Kapsch & Söhne (KS), Telephon- und Telegraphenfabriks-AG; Wien:

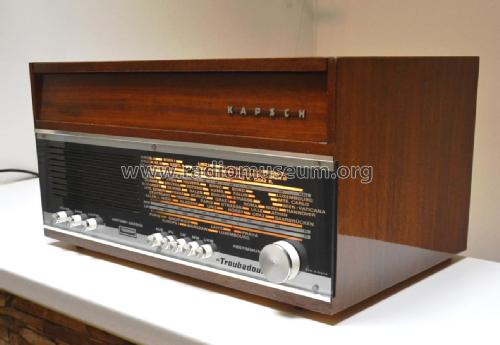

Kapsch Troubadour Phono

Country:  Austria
Manufacturer / Brand:  Kapsch & Söhne (KS), Telephon- und Telegraphenfabriks-AG; Wien
Year: 1968/1969 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECC85 ECH81 EAF801 ECL86 EM87
Main principle Superheterodyne (common); ZF/IF 480/10700 kHz
Wave bands Broadcast, Long Wave and FM or UHF.
Details Record Player (not changer)
Power type and voltage Alternating Current supply (AC) / 220/240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: Troubadour Phono - Kapsch & Söhne KS, Telephon-
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 490 x 250 x 300 mm / 19.3 x 9.8 x 11.8 inch
Notes
  • Einbaulaufwerk Dual 410 mit CDS 630/5
  • Anschlüsse:
    • Phono/Tonband-Wiedergabe und Tonband-Aufnahme (DIN)
    • LS Anschluss (DIN)
    • Antenne
  • wichtige Bauteile:
    • Skalenlämpchen 7V 0,3A
    • Selengleichrichter B250 C150 (Artikel Nummer RZ 21684)
Source of data -- Original-techn. papers. / Radiokatalog Band 2, Ernst Erb
Mentioned in Museums Bote, Österr. (Heft 126/2004, S.8, Kurzbeschreibung)

Model page created by Wolfgang Bauer. See "Data change" for further contributors.
