Viennastar 550 VS550

Viennastar 550 VS550; Kapsch & Söhne KS, (ID = 147227) Television

Viennastar 550 VS550; Kapsch & Söhne KS, (ID = 147228) Television
Viennastar 550 VS550; Kapsch & Söhne KS, (ID = 809146) Television Viennastar 550 VS550; Kapsch & Söhne KS, (ID = 140057) Television

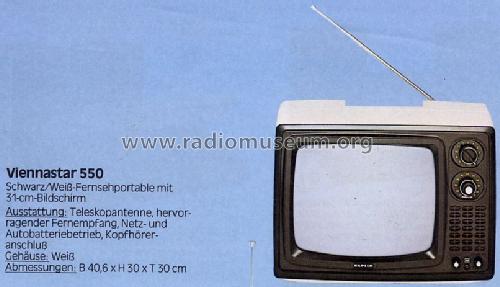

Viennastar 550 VS550; Kapsch & Söhne KS, (ID = 849245) Television
Use red slider bar for more.
Viennastar 550 VS550; Kapsch & Söhne KS, (ID = 809146) Television
Kapsch & Söhne KS,: Viennastar 550 VS550 [Television] ID = 809146 432x457
Select picture or schematic to display from thumbnails on the right and click for download.
For model Viennastar 550 VS550, Kapsch & Söhne (KS), Telephon- und Telegraphenfabriks-AG; Wien:
Detailbild aus nachstehender Prospektseite, hochgeladen von Herrn Hannes Wurnitsch.

Country:  Austria
Manufacturer / Brand:  Kapsch & Söhne (KS), Telephon- und Telegraphenfabriks-AG; Wien
Year: 1978/1979 Category: Television Receiver (TV) or Monitor
Valves / Tubes 1: 310FZB4 or 310FZB4 or 310GNB4A
Semiconductors (the count is only for transistors) 17:
Main principle Superheterodyne (common)
Wave bands VHF incl. FM and/or UHF (see notes for details)
Details
Power type and voltage Line / Batteries (any type) / 220 / 12 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 cm = 3.1 inch
Power out
from Radiomuseum.org Model: Viennastar 550 VS550 - Kapsch & Söhne KS, Telephon-
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 406 x 300 x 299 mm / 16 x 11.8 x 11.8 inch
Notes

Kapsch Viennastar 550

  • CCIR B/G
  • Fernsehband I+III (Kanal 2-12)
  • Band IV/V (Kanal 21-69)
  • 31 cm Bildröhre 310FZB4, 310FZB4 oder 310GNB4A ausgerüstet.
Net weight (2.2 lb = 1 kg) 6.9 kg / 15 lb 3.2 oz (15.198 lb)
Source of data -- Original prospect or advert / Radiokatalog Band 2, Ernst Erb
Literature/Schematics (1) -- Original-techn. papers. ((A) Kapsch Geräteprogramm 1978/79)

Model page created by Hannes Wurnitsch. See "Data change" for further contributors.
