Minija 4 SML-1

Minija 4; Kauno Radijo Gamykla (ID = 439888) Radio

Minija 4; Kauno Radijo Gamykla (ID = 439889) Radio
Minija 4; Kauno Radijo Gamykla (ID = 439880) Radio Minija 4; Kauno Radijo Gamykla (ID = 439881) Radio
Minija 4; Kauno Radijo Gamykla (ID = 439885) Radio Minija 4; Kauno Radijo Gamykla (ID = 439882) Radio
Minija 4; Kauno Radijo Gamykla (ID = 439883) Radio Minija 4; Kauno Radijo Gamykla (ID = 439884) Radio
Minija 4; Kauno Radijo Gamykla (ID = 439886) Radio Minija 4; Kauno Radijo Gamykla (ID = 439887) Radio
Use red slider bar for more.
Minija 4; Kauno Radijo Gamykla (ID = 439880) Radio
Kauno Radijo Gamykla: Minija 4 [Radio] ID = 439880 758x452
Select picture or schematic to display from thumbnails on the right and click for download.
For model Minija 4 SML-1, Kauno Radijo Gamykla (KRG), Kaunas:
Kaunas Lithuania

Country:  Lithuania (Lithuania, Vilnius)
Manufacturer / Brand:  Kauno Radijo Gamykla (KRG), Kaunas
alternative name

Banga - Lithuania TV sets industrial union
Year: 1971–1973 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 8: 6Н3П 6И1П 6К4П 6К4П 6Е1П 6Х2П 6Н2П 6П14П
Main principle Superheterodyne (common); ZF/IF 465/? kHz; 3 AF stage(s)
Tuned circuits 10 AM circuit(s)     12 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details Tape Recorder
Power type and voltage Alternating Current supply (AC) / 127; 220 Volt
Loudspeaker 4 Loudspeakers
Power out
from Radiomuseum.org Model: Minija 4 [SML-1] - Kauno Radijo Gamykla KRG,
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 826 x 404 x 380 mm / 32.5 x 15.9 x 15 inch

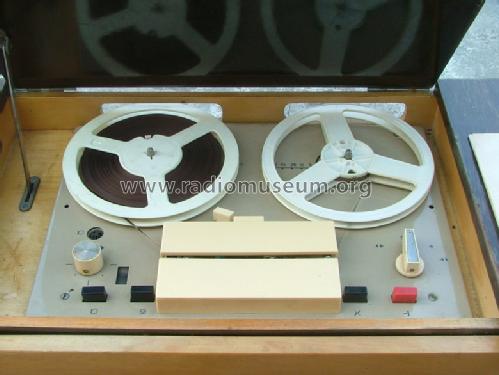

Notes In this set used new model tape-recorder block "Vilniale", from 1971 produced in VILMA Lithuanian Governmental devices factory, Vilnius (LT). Same as tape recorder VILMA M1 (see in RMorg).
Net weight (2.2 lb = 1 kg) 26 kg / 57 lb 4.3 oz (57.269 lb)

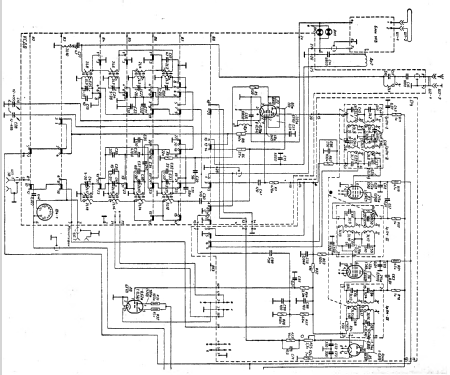

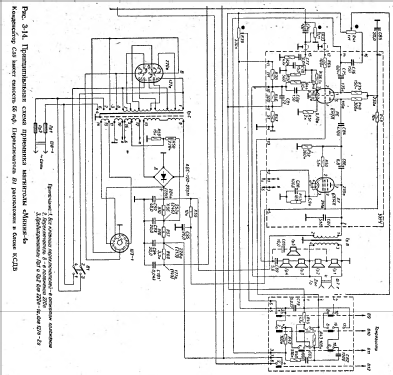

Mentioned in -- Schematic

Model page created by Zenonas Langaitis. See "Data change" for further contributors.
