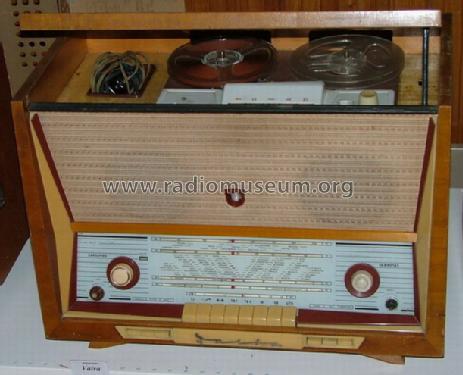

Vaiva ; Kauno Radijo Gamykla (ID = 88876) Radio
Kauno Radijo Gamykla: Vaiva [Radio] ID = 88876 722x534
Select picture or schematic to display from thumbnails on the right and click for download.
For model Vaiva, Kauno Radijo Gamykla (KRG), Kaunas

Country:  Lithuania (Lithuania, Vilnius)
Manufacturer / Brand:  Kauno Radijo Gamykla (KRG), Kaunas
alternative name

Banga - Lithuania TV sets industrial union
Year: 1961–1963 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 8: 6Н3П 6И1П 6К4П 6К4П 6Е1П 6Х2П 6Н2П 6П14П
Main principle Superhet with RF-stage; ZF/IF 465 kHz
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details Tape Recorder
Power type and voltage Alternating Current supply (AC) / 127/220 Volt
Loudspeaker 4 Loudspeakers
Power out
from Radiomuseum.org Model: Vaiva - Kauno Radijo Gamykla KRG,
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 622 x 435 x 375 mm / 24.5 x 17.1 x 14.8 inch
Notes Tape-recorder block "Elfa-17" or "Elfa-21", produced in ELFA Elektrotechnical Works, Vilnius (LT).
Net weight (2.2 lb = 1 kg) 26 kg / 57 lb 4.3 oz (57.269 lb)
Price in first year of sale 190.00 SUR

Model page created by Sigitas Zilionis. See "Data change" for further contributors.
