• Year
  • 1931
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 18728
    • alternative name: Colin B. Kennedy Corp.
    • Brand: Globe Trotter

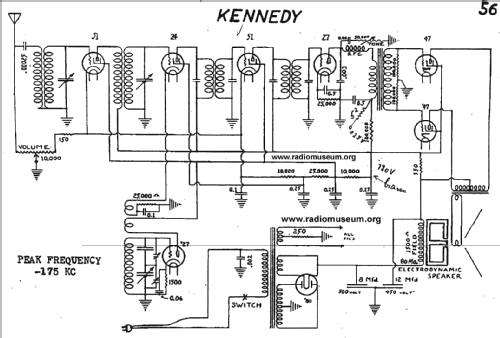

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 8
  • Main principle
  • Superhet with RF-stage; ZF/IF 175 kHz
  • Tuned circuits
  • 7 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Details
  • Record Player (not changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 115 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
  • Power out
  • 5 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: 56 - Kennedy Co., Colin B.; San
  • Shape
  • Console, Lowboy (legs < 50 %).
  • Dimensions (WHD)
  • 24 x 39 x 10 inch / 610 x 991 x 254 mm
  • Notes
  • Push-pull output stage.
  • External source of data
  • E. Erb 3-907007-36-0
  • Circuit diagram reference
  • Die «Thali Schemasammlung» führt das Modell.
