K327

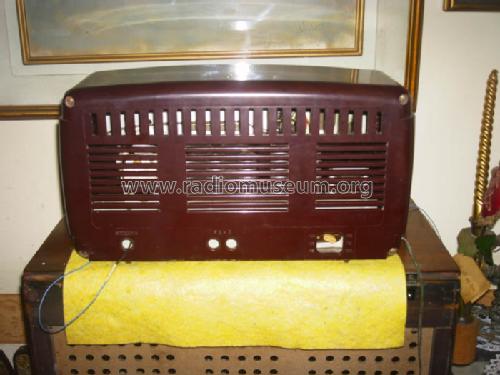

K327; Kennedy marca / (ID = 795078) Radio K327; Kennedy marca / (ID = 795084) Radio
K327; Kennedy marca / (ID = 795086) Radio
Use red slider bar for more.
K327; Kennedy marca / (ID = 795078) Radio
Kennedy marca /: K327 [Radio] ID = 795078 700x525
Select picture or schematic to display from thumbnails on the right and click for download.
For model K327, Kennedy (marca / brand); ved. le note / see text

Country:  Italy
Manufacturer / Brand:  Kennedy (marca / brand); ved. le note / see text
Year: 1955/1956 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECH81 6BA6 6AT6 50F2 35X4
Main principle Superheterodyne (common)
Wave bands Broadcast plus 2 Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 140; 160; 175; 230 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 4 W (unknown quality)
from Radiomuseum.org Model: K327 - Kennedy marca / brand; ved. le
Material Bakelite case
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 390 x 150 x 210 mm / 15.4 x 5.9 x 8.3 inch
Net weight (2.2 lb = 1 kg) 4.5 kg / 9 lb 14.6 oz (9.912 lb)

Model page created by Pietro Ferrante. See "Data change" for further contributors.
