K421

K421; Kennedy marca / (ID = 363875) Radio
K421; Kennedy marca / (ID = 249136) Radio K421; Kennedy marca / (ID = 249138) Radio
K421; Kennedy marca / (ID = 249139) Radio
Use red slider bar for more.

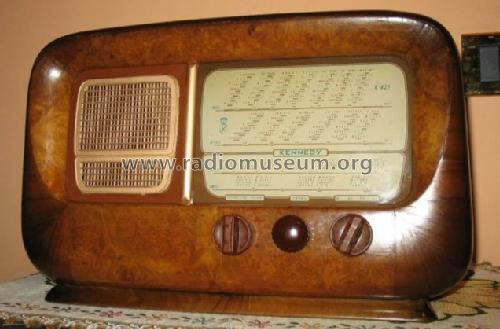

K421; Kennedy marca / (ID = 249136) Radio
Kennedy marca /: K421 [Radio] ID = 249136 636x419
Select picture or schematic to display from thumbnails on the right and click for download.
For model K421, Kennedy (marca / brand); ved. le note / see text:
Foto per cortesia del venditore ebay: fravagnano

Country:  Italy
Manufacturer / Brand:  Kennedy (marca / brand); ved. le note / see text
Year: 1952 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: UCH42 12BA6 12AT6 50C5 35W4
Main principle Superheterodyne (common); ZF/IF 471 kHz
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Alternating Current supply (AC) / 115-230 Volt
Loudspeaker Permanent or electro-dynamic (moving coil), system not known yet.
Power out
from Radiomuseum.org Model: K421 - Kennedy marca / brand; ved. le
Material Wooden case
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 420 x 240 x 160 mm / 16.5 x 9.4 x 6.3 inch
Notes Gamme d'onda: 2 medie e 2 corte.
Wave bands: 2x MW, 2x SW
Net weight (2.2 lb = 1 kg) 4 kg / 8 lb 13 oz (8.811 lb)
Source of data -- Collector info (Sammler)
Literature/Schematics (1) -- Schematic

Model page created by Alessandro De Poi. See "Data change" for further contributors.
