Alignmentscope 5091
Kikusui Denpa, later Kikusui Electronics; Yokohama
- Country
- Japan
- Manufacturer / Brand
- Kikusui Denpa, later Kikusui Electronics; Yokohama
- Year
- 1990 ??
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 360225
- Number of Tubes
- 1
- Valves / Tubes

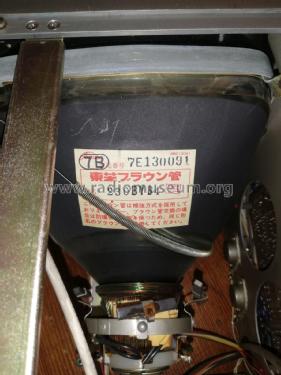

- 230BYB4
- Number of Transistors
- Semiconductors present.
- Semiconductors
- 2SD111
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Metal case
- from Radiomuseum.org
- Model: Alignmentscope 5091 - Kikusui Denpa, later Kikusui
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 220 x 220 x 310 mm / 8.7 x 8.7 x 12.2 inch
- Notes
-

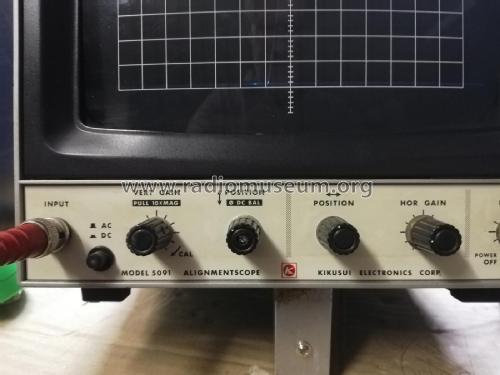

The Kikusui Alignmentscope model 5091 is a X-Y video display unit intended for alignment purposes. Y-input AC or DC-coupled switchable.
- Net weight (2.2 lb = 1 kg)
- 6 kg / 13 lb 3.5 oz (13.216 lb)
- Author
- Model page created by Giuseppe Feniello. See "Data change" for further contributors.
