• Country
• Germany

• Manufacturer / Brand
• Kiraco Welt-Radio GmbH (Kisters); Meersburg bzw. Konstanz

• Year
• 1952/1953

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 25452

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 10

• Valves / Tubes
• EF42 ECH42 6RV EB41 EM34 6RV 6RV 6RV EL41 AZ11

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 8 AM circuit(s)     9 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110-240 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org

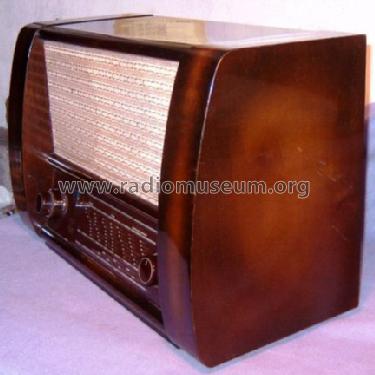

• Model: Amati 53WU17 [vor 5000] - Kiraco Welt-Radio GmbH Kisters

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 545 x 353 x 250 mm / 21.5 x 13.9 x 9.8 inch

• Notes
•   Siehe auch gleichnamigen Nachfolgetyp mit Tasten und EF43 statt 6RV.

• Net weight (2.2 lb = 1 kg)
• 10.5 kg / 23 lb 2 oz (23.128 lb)

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Author
• Model page created by Iven Müller. See "Data change" for further contributors.
