Wobbel-Oszillograf Radiotest OS-5

Wobbel-Oszillograf Radiotest OS-5; Klein & Hummel; (ID = 183757) Equipment

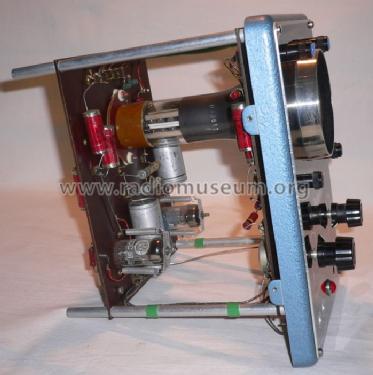

Wobbel-Oszillograf Radiotest OS-5; Klein & Hummel; (ID = 765793) Equipment Wobbel-Oszillograf Radiotest OS-5; Klein & Hummel; (ID = 765796) Equipment
Wobbel-Oszillograf Radiotest OS-5; Klein & Hummel; (ID = 765794) Equipment Wobbel-Oszillograf Radiotest OS-5; Klein & Hummel; (ID = 765792) Equipment

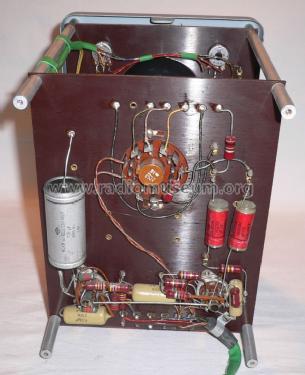

Wobbel-Oszillograf Radiotest OS-5; Klein & Hummel; (ID = 765798) Equipment Wobbel-Oszillograf Radiotest OS-5; Klein & Hummel; (ID = 765800) Equipment
Wobbel-Oszillograf Radiotest OS-5; Klein & Hummel; (ID = 1390377) Equipment
Use red slider bar for more.
Wobbel-Oszillograf Radiotest OS-5; Klein & Hummel; (ID = 765793) Equipment
Klein & Hummel;: Wobbel-Oszillograf Radiotest OS-5 [Equipment] ID = 765793 800x692
Select picture or schematic to display from thumbnails on the right and click for download.
For model Wobbel-Oszillograf Radiotest OS-5, Klein & Hummel; Stuttgart-Kemnat (Marke: K+H, Telewatt, Schwabenradio)

Country:  Germany
Manufacturer / Brand:  Klein & Hummel; Stuttgart-Kemnat (Marke: K+H, Telewatt, Schwabenradio)
Year: 1955–1957 Category: Service- or Lab Equipment
Valves / Tubes 3: ECC81 ECC81 DG7-31 or DG7-32
Semiconductors (the count is only for transistors) E500C2 E500C2 OA81
Wave bands - without
Details
Power type and voltage Powered by external power supply or a main unit.
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Wobbel-Oszillograf Radiotest OS-5 - Klein & Hummel; Stuttgart-
Material Metal case
Shape Tablemodel, with any shape - general.
Notes


Der 7 cm Oszillograf Radiotest OS-5 ist ein Zusatzgerät zum Wobbel-Messsender MS-5.
Diode OA81 im Tastkopf.

Mentioned in Lange, Schaltungen der Funkindustrie (Band 6, Seite 118)

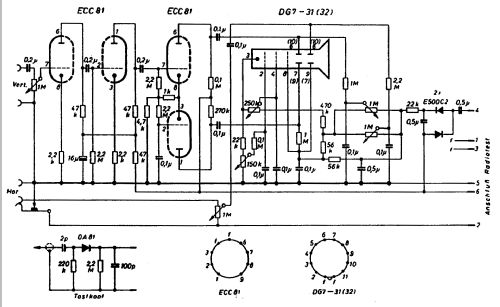

Literature/Schematics (1) Funk-Technik (FT) (22/1955, S. 651 / Neuvorstellung)

Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
