Telewatt FM-11M

Telewatt FM-11M; Klein & Hummel; (ID = 1269289) Radio

Telewatt FM-11M; Klein & Hummel; (ID = 1778067) Radio
Telewatt FM-11M; Klein & Hummel; (ID = 109896) Radio Telewatt FM-11M; Klein & Hummel; (ID = 109899) Radio
Telewatt FM-11M; Klein & Hummel; (ID = 109898) Radio Telewatt FM-11M; Klein & Hummel; (ID = 109900) Radio
Use red slider bar for more.

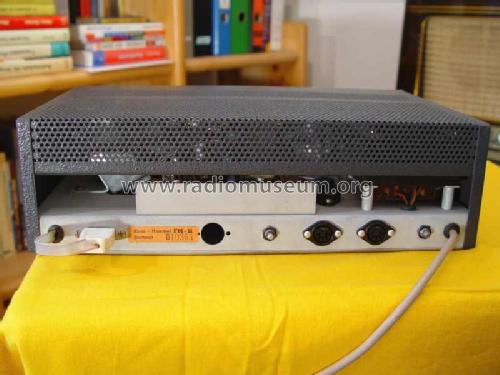

Telewatt FM-11M; Klein & Hummel; (ID = 109896) Radio
Klein & Hummel;: Telewatt FM-11M [Radio] ID = 109896 800x600
Select picture or schematic to display from thumbnails on the right and click for download.
For model Telewatt FM-11M, Klein & Hummel; Stuttgart-Kemnat (Marke: K+H, Telewatt, Schwabenradio)

Country:  Germany
Manufacturer / Brand:  Klein & Hummel; Stuttgart-Kemnat (Marke: K+H, Telewatt, Schwabenradio)
Year: 1964 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 8: ECC85 EF94 EF94 EF94 EMM803 EAA91 ECC81 EL86
Semiconductors (the count is only for transistors) 4: AC125 AC125 AC125 AC125
Main principle Superheterodyne (common); ZF/IF 10700 kHz; 2 AF stage(s)
Tuned circuits 11 FM circuit(s)
Wave bands FM Broadcast Band Only
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Telewatt FM-11M - Klein & Hummel; Stuttgart-
Material Metal case
Shape Book-shelf unit.
Dimensions (WHD) 330 x 100 x 195 mm / 13 x 3.9 x 7.7 inch
Notes UKW Stereo Tuner. Stereodecoder mit 4 Transistoren AC125.
FM-11 M Ausführung in Metallgehäuse
FM-11 H Ausführung in Holzgehäuse
Net weight (2.2 lb = 1 kg) 5 kg / 11 lb 0.2 oz (11.013 lb)
Source of data Radiokatalog Band 2, Ernst Erb
Mentioned in Funkschau (7/1964, S. 182)
Literature/Schematics (4) -- Schematic

Model page created by Wolfgang Koch. See "Data change" for further contributors.
