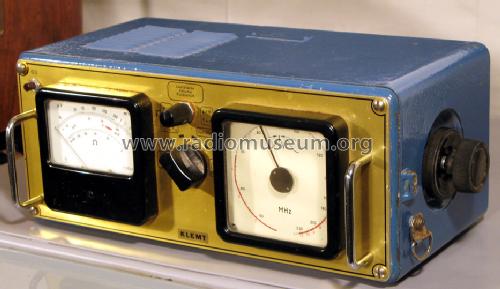

Antennentestgerät AT200M; Klemt, Arthur; (ID = 657538) Equipment
Klemt, Arthur;: Antennentestgerät AT200M [Equipment] ID = 657538 933x541
Select picture or schematic to display from thumbnails on the right and click for download.
For model Antennentestgerät AT200M, Klemt, Arthur; Olching

Country:  Germany
Manufacturer / Brand:  Klemt, Arthur; Olching
Year: 1958 Category: Service- or Lab Equipment
Valves / Tubes 6: 1AD4 DF96 DF96 DF96 DF96 DL96
Main principle Superheterodyne (common); 1 AF stage(s)
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Line / Batteries (any type) / 110; 125; 150; 220; 240 / 1,2 & 2 × 67,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7 cm = 2.8 inch
Power out
from Radiomuseum.org Model: Antennentestgerät AT200M - Klemt, Arthur; Olching
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 320 x 210 x 135 mm / 12.6 x 8.3 x 5.3 inch
Notes Frequenzbereich 45 bis 225 MHz. ZF (-Ausgang) 70 kHz?
Net weight (2.2 lb = 1 kg) 7 kg / 15 lb 6.7 oz (15.419 lb)

Model page created by Norbert Haselbach. See "Data change" for further contributors.
