FM Receiver Model Eight (8)

KLH R&D Co.; Cambridge (MA)

Data

Forum

Pictures

Collections

Country
United States of America (USA)

Manufacturer / Brand
KLH R&D Co.; Cambridge (MA)

Year
1960 ?

Category
Broadcast Receiver - or past WW2 Tuner

Radiomuseum.org ID
111494

Schematics

FM Receiver Model Eight ; KLH R&D Co.; (ID = 1146385) Radio — KLH R&D Co.; FM Receiver Model Eight (3)

FM Receiver Model Eight ; KLH R&D Co.; (ID = 1146386) Radio — KLH R&D Co.; FM Receiver Model Eight (3)

FM Receiver Model Eight ; KLH R&D Co.; (ID = 1147145) Radio — KLH R&D Co.; FM Receiver Model Eight (2)

FM Receiver Model Eight ; KLH R&D Co.; (ID = 1147146) Radio — KLH R&D Co.; FM Receiver Model Eight (2)

FM Receiver Model Eight ; KLH R&D Co.; (ID = 1147147) Radio — KLH R&D Co.; FM Receiver Model Eight (2)

FM Receiver Model Eight ; KLH R&D Co.; (ID = 395307) Radio — KLH R&D Co.; FM Receiver Model Eight (2)
300178060377

FM Receiver Model Eight ; KLH R&D Co.; (ID = 395306) Radio — KLH R&D Co.; FM Receiver Model Eight (2)
300178060377

FM Receiver Model Eight ; KLH R&D Co.; (ID = 1147148) Radio — KLH R&D Co.; FM Receiver Model Eight (2)

FM Receiver Model Eight ; KLH R&D Co.; (ID = 1147149) Radio — KLH R&D Co.; FM Receiver Model Eight (2)

FM Receiver Model Eight ; KLH R&D Co.; (ID = 1147150) Radio — KLH R&D Co.; FM Receiver Model Eight (2)

FM Receiver Model Eight ; KLH R&D Co.; (ID = 1147151) Radio — KLH R&D Co.; FM Receiver Model Eight (2)

FM Receiver Model Eight ; KLH R&D Co.; (ID = 1147152) Radio — KLH R&D Co.; FM Receiver Model Eight (2)

FM Receiver Model Eight ; KLH R&D Co.; (ID = 1147154) Radio — KLH R&D Co.; FM Receiver Model Eight (2)

FM Receiver Model Eight ; KLH R&D Co.; (ID = 1204075) Radio — KLH R&D Co.; FM Receiver Model Eight (2)
Ebay User biddernorth Item 290691471931

FM Receiver Model Eight ; KLH R&D Co.; (ID = 1204077) Radio — KLH R&D Co.; FM Receiver Model Eight (2)
Ebay User biddernorth Item 290691471931

FM Receiver Model Eight ; KLH R&D Co.; (ID = 1204078) Radio — KLH R&D Co.; FM Receiver Model Eight (2)
Ebay User biddernorth Item 290691471931

FM Receiver Model Eight ; KLH R&D Co.; (ID = 1204079) Radio — KLH R&D Co.; FM Receiver Model Eight (2)
Ebay User biddernorth Item 290691471931

FM Receiver Model Eight ; KLH R&D Co.; (ID = 1208444) Radio — KLH R&D Co.; FM Receiver Model Eight (2)
Ebay User restockmarket Item 260993935524

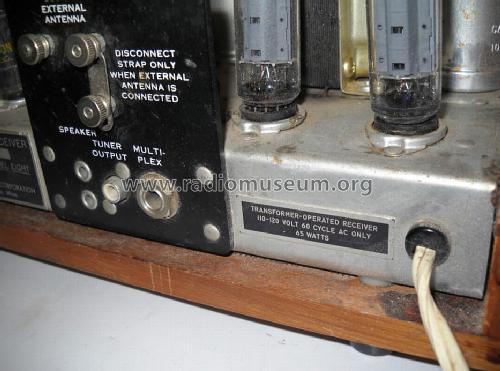

FM Receiver Model Eight ; KLH R&D Co.; (ID = 1208445) Radio — KLH R&D Co.; FM Receiver Model Eight (2)
Ebay User restockmarket Item 260993935524

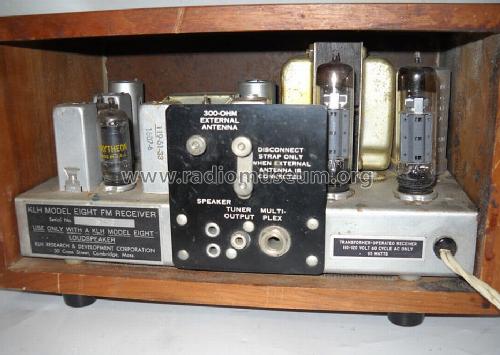

FM Receiver Model Eight ; KLH R&D Co.; (ID = 1208446) Radio — KLH R&D Co.; FM Receiver Model Eight (2)
Ebay User restockmarket Item 260993935524

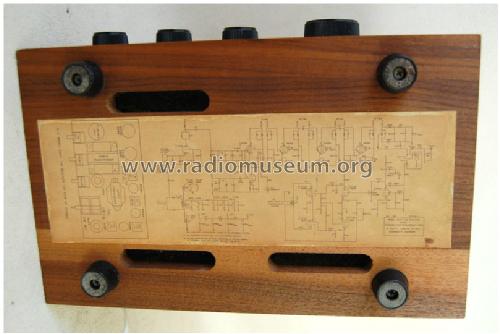

Click on the schematic thumbnail to request the schematic as a free document.

Technical Specifications

Number of Tubes
7

Valves / Tubes
6BS8 6U8A 6AU6A 6AU6A 6AU6A 6BM8 or ECL82 6BM8 or ECL82

Main principle
Superhet with RF-stage; ZF/IF 10700 kHz; 3 AF stage(s)

Tuned circuits
11 FM circuit(s)

Wave bands
FM Broadcast Band Only

Power type and voltage
Alternating Current supply (AC) / 110-120 Volt

Loudspeaker
- This model requires external speaker(s).

Material
Wooden case

from Radiomuseum.org
Model: FM Receiver Model Eight - KLH R&D Co.; Cambridge MA

Shape
Tablemodel, with any shape - general.

Notes

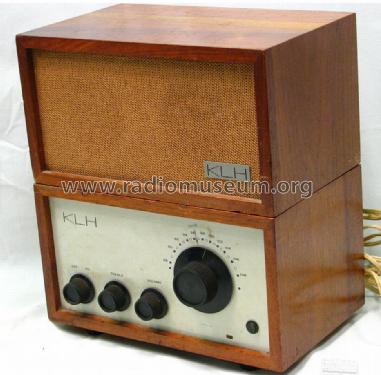

KLH FM Receiver model Eight.
Tuner and multiplex output, for use with KLH model Eight loudspeaker.

Source of data
-- Schematic

Author
Model page created by a member from A. See "Data change" for further contributors.
