KT-6

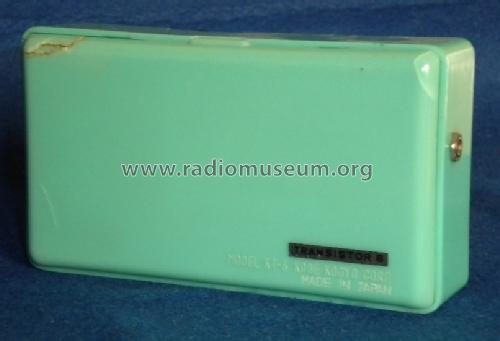

KT-6; TEN brand, Kobe (ID = 1128491) Radio KT-6; TEN brand, Kobe (ID = 1128493) Radio
KT-6; TEN brand, Kobe (ID = 1128495) Radio KT-6; TEN brand, Kobe (ID = 2514970) Radio
KT-6; TEN brand, Kobe (ID = 2514971) Radio KT-6; TEN brand, Kobe (ID = 2514972) Radio
KT-6; TEN brand, Kobe (ID = 2514973) Radio KT-6; TEN brand, Kobe (ID = 2514974) Radio
Use red slider bar for more.
KT-6; TEN brand, Kobe (ID = 1128491) Radio
TEN brand, Kobe: KT-6 [Radio] ID = 1128491 795x470
Select picture or schematic to display from thumbnails on the right and click for download.
For model KT-6, TEN (brand), Kobe Kogyo Corporation; Kobe

Country:  Japan
Manufacturer / Brand:  TEN (brand), Kobe Kogyo Corporation; Kobe
Year: 1957 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 6: 2S30 2S31 2S31 2S32 2S33 2S33 1NA4 KV-1
Main principle Superheterodyne (common); ZF/IF 455 kHz
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: KT-6 - TEN brand, Kobe Kogyo
Material Plastics (no bakelite or catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 135 x 75 x 40 mm / 5.3 x 3 x 1.6 inch
Notes

2 diodes. Earphone jack. Frequency range: 535-1605 kHz.
First transistor radio of Kobe Kogyo Corporation under brandname TEN.

Net weight (2.2 lb = 1 kg) 0.370 kg / 0 lb 13 oz (0.815 lb)
