• Country
• United States of America (USA)

• Manufacturer / Brand
• Radio Shack (Tandy, Realistic, Micronta); USA

• Year
• 1959

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 294584

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 4

• Semiconductors
• HJ55 HJ54 HJ50 HJ51 1N46

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 4 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / 1 x 9 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Realistic HI-FIVER Cat. No. R-7231C - Radio Shack Tandy, Realistic,

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 5.375 x 3 x 1.5 inch / 137 x 76 x 38 mm

• Notes

• Similar to Brighton G-401 and Million G-401

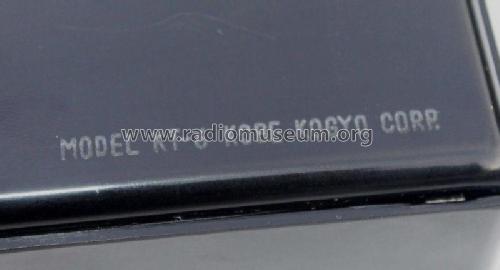

  Case is similar to KOBE KT-6 (see marking on the back) but with a 4 transistor chassis and very early Hitachi versions though KOBE KOGYO (Brand: TEN) already developed a lot of own transistor types at this time.

  Replacement battery Cat. No. R-7244

  The case was inspiration for the German RFT model Sternchen 57/69TT, although the circuit technology differs significantly.

  For additional externally similar models see also Pacific G-601, Realtone G-401, Realtone G-601,

• Mentioned in
• Radio Shack Catalog (1959, page 227)
