• Year
  • 1928/1929
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 15428

 Technical Specifications

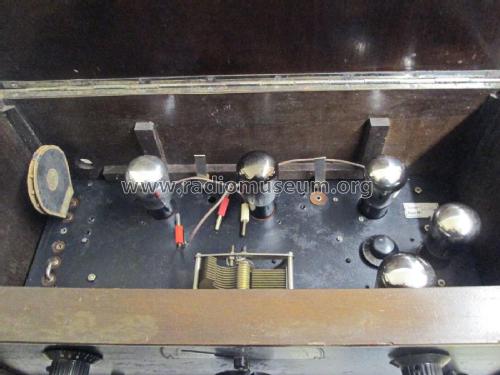

  • Number of Tubes
  • 5
  • Main principle
  • TRF without regeneration; 2 Special; 2 AF stage(s)
  • Tuned circuits
  • 3 AM circuit(s)
  • Wave bands
  • Broadcast (MW) and Long Wave.
  • Power type and voltage
  • Storage and/or dry batteries
  • Material
  • Wooden case
  • from Radiomuseum.org

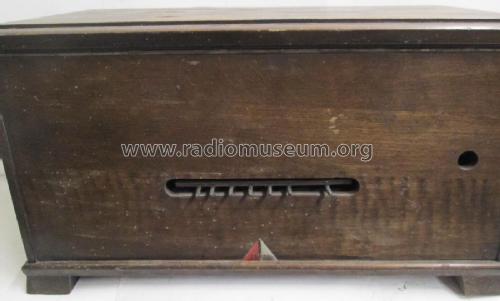

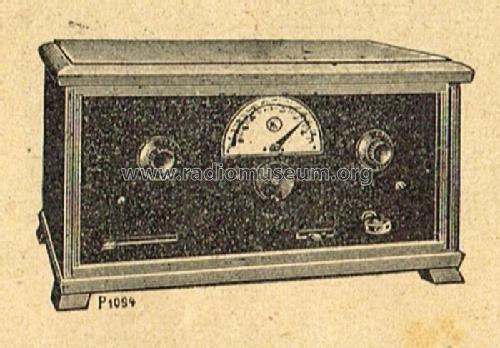

  • Model: ER548 - Koch & Sterzel AG; Dresden
  • Notes
  • Benötigt Lautsprecher, ob eingebaut oder extern ist noch unklar.

  • Price in first year of sale
  • 269.00 RM !
  • External source of data
  • E. Erb 3-907007-36-0
  • Source of data
  • Radiokatalog Band 2, Ernst Erb
  • Circuit diagram reference
  • Röhren in FS-Bestückungstabellen
