Kastor W

Kastor W; Koch & Sterzel AG; (ID = 57538) Radio

Kastor W; Koch & Sterzel AG; (ID = 56555) Radio
Kastor W; Koch & Sterzel AG; (ID = 11998) Radio Kastor W; Koch & Sterzel AG; (ID = 11999) Radio
Kastor W; Koch & Sterzel AG; (ID = 1318818) Radio Kastor W; Koch & Sterzel AG; (ID = 1318819) Radio

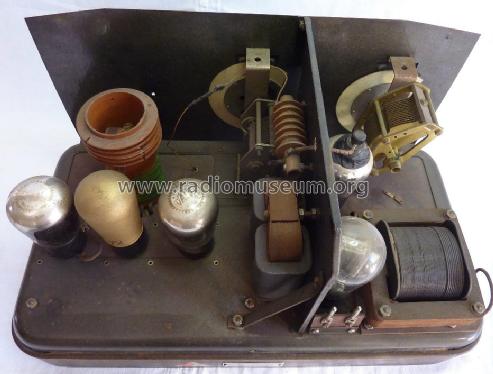

Kastor W; Koch & Sterzel AG; (ID = 1318820) Radio Kastor W; Koch & Sterzel AG; (ID = 1318821) Radio
Kastor W; Koch & Sterzel AG; (ID = 1395036) Radio
Use red slider bar for more.
Kastor W; Koch & Sterzel AG; (ID = 11998) Radio
Koch & Sterzel AG;: Kastor W [Radio] ID = 11998 575x357
Select picture or schematic to display from thumbnails on the right and click for download.
For model Kastor W, Koch & Sterzel AG; Dresden:
Bild aus ebay

Country:  Germany
Manufacturer / Brand:  Koch & Sterzel AG; Dresden
Year: 1929/1930 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: RENS1204 REN904 REN904 RES164 RGN1054
Main principle TRF without regeneration; 1 Special; 2 AF stage(s)
Tuned circuits 2 AM circuit(s)
Details
Power type and voltage Alternating Current supply (AC)
Loudspeaker
Power out
from Radiomuseum.org Model: Kastor W - Koch & Sterzel AG; Dresden
Material Metal case
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
Circuit diagram reference Röhren in FS-Bestückungstabellen


All listed radios etc. from Koch & Sterzel AG; Dresden
Here you find 75 models, 39 with images and 14 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
