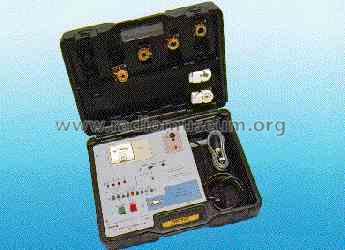

Bildröhrenregeneriergerät TR650 (5748)
König Electronic GmbH; Reichelsheim
- Country
- Germany
- Manufacturer / Brand
- König Electronic GmbH; Reichelsheim
- Year
- 1995 ?
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 143856
König Katalog 1995
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 240 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Bildröhrenregeneriergerät TR650 - König Electronic GmbH;
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 420 x 145 x 340 mm / 16.5 x 5.7 x 13.4 inch
- Notes
- Bildröhrenregeneriergerät TR650 (5748).

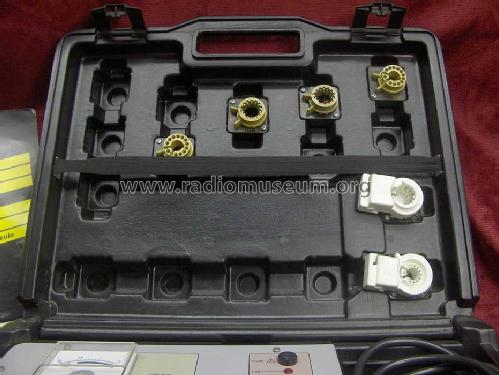

Messung, Analyse und Regenerieren von S/W- und Farbbildröhren, Schluss-Beseitigung, Regenerierströme 25 mA und 50 mA, Emissionsbereich 0 bis 1,6 mA, Spannung am Gitter 2: ca. 280 V, sechs Adapter im Lieferumfang.
- Net weight (2.2 lb = 1 kg)
- 4.4 kg / 9 lb 11.1 oz (9.692 lb)
- Mentioned in
- -- Original prospect or advert (König Katalog 1/1995)
- Author
- Model page created by Karlheinz Fischer. See "Data change" for further contributors.
