Chieftain KR023

Chieftain KR023; Kolster Brandes Ltd. (ID = 1579332) Radio

Chieftain KR023; Kolster Brandes Ltd. (ID = 1579333) Radio

Chieftain KR023; Kolster Brandes Ltd. (ID = 1579334) Radio

Chieftain KR023; Kolster Brandes Ltd. (ID = 1579335) Radio

Chieftain KR023; Kolster Brandes Ltd. (ID = 1579338) Radio
Chieftain KR023; Kolster Brandes Ltd. (ID = 1980912) Radio Chieftain KR023; Kolster Brandes Ltd. (ID = 1578690) Radio
Chieftain KR023; Kolster Brandes Ltd. (ID = 1980913) Radio Chieftain KR023; Kolster Brandes Ltd. (ID = 1980914) Radio
Chieftain KR023; Kolster Brandes Ltd. (ID = 1980915) Radio
Use red slider bar for more.

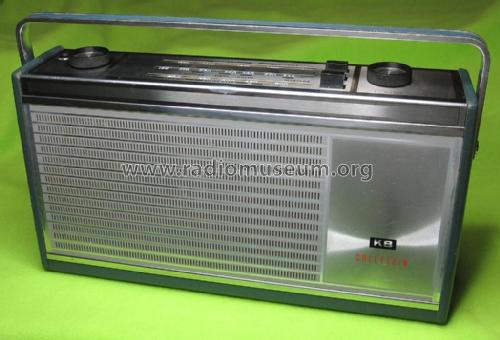

Chieftain KR023; Kolster Brandes Ltd. (ID = 1980912) Radio
Kolster Brandes Ltd.: Chieftain KR023 [Radio] ID = 1980912 1024x697
Select picture or schematic to display from thumbnails on the right and click for download.
For model Chieftain KR023, Kolster Brandes Ltd. (KB, K.B., ITT); Foots Cray; GB:
Original condition apart from a dent in the centre front of the dial trim

Country:  Great Britain (UK)
Manufacturer / Brand:  Kolster Brandes Ltd. (KB, K.B., ITT); Foots Cray; GB
Year: 1967 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 7: AF117 AF117 OC70 AC157 AC113 AC154 AC157
Main principle Superheterodyne (common)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Dry Batteries / PP9: 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical / Ø 7 inch = 17.8 cm
Power out 0.85 W (max.)
from Radiomuseum.org Model: Chieftain KR023 - Kolster Brandes Ltd. KB, K.B.,
Material Various materials
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 310 x 170 x 83 mm / 12.2 x 6.7 x 3.3 inch
Notes

MW has 2 bandspread ranges:
MW1 = 540 - 1090 kHz & MW2 = 1070 - 1620 kHz.
Same chassis as RGD RR223 "Rapier"

Alternative transistors AF127 AF127 OC70 AC127 AC128 AC127 AC128

Dimensions above exclude handle and knobs

Price in first year of sale 17.33 UK £
Mentioned in Date and price from Radio Radio, (Hill), page 260

Model page created by Mike Edwards. See "Data change" for further contributors.
