Colour Television (PAL) CS610 CVC9

Colour Television CS610 CVC9; ITT-KB; Foots Cray, (ID = 1249459) Television Colour Television CS610 CVC9; ITT-KB; Foots Cray, (ID = 1249723) Television

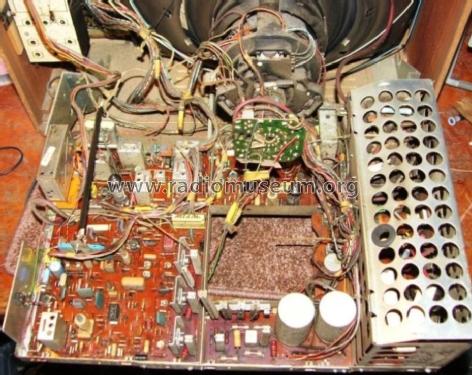

Colour Television CS610 CVC9; ITT-KB; Foots Cray, (ID = 1249724) Television Colour Television CS610 CVC9; ITT-KB; Foots Cray, (ID = 1249729) Television
Use red slider bar for more.
Colour Television CS610 CVC9; ITT-KB; Foots Cray, (ID = 1249459) Television
ITT-KB; Foots Cray,: Colour Television CS610 CVC9 [Television] ID = 1249459 933x655
Select picture or schematic to display from thumbnails on the right and click for download.
For model Colour Television (PAL) CS610 CVC9, ITT-KB; Foots Cray, Kent; (ITT Consumer Products (UK) Ltd. ex Kolster-Brandes)

Country:  Great Britain (UK)
Manufacturer / Brand:  ITT-KB; Foots Cray, Kent; (ITT Consumer Products (UK) Ltd. ex Kolster-Brandes)
Year: 1974 ? Category: Television Receiver (TV) or Monitor
Valves / Tubes 6: PL509 PY500A PCL805 PCL86 PCF802 A56-120X
Semiconductors (the count is only for transistors) 41:
Main principle Super-Heterodyne (Super in general)
Wave bands VHF incl. FM and/or UHF (see notes for details)
Details
Power type and voltage Alternating Current supply (AC) / 240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Colour Television CS610 CVC9 - ITT-KB; Foots Cray, Kent; ITT
Material Wooden case
Dimensions (WHD) 27 x 19 x 20 inch / 686 x 483 x 508 mm
Notes Later derivitive of the ITT/KB CVC9 chassis.
Mentioned in Radio And Television Servicing books (R&TVS)

Model page created by Dave Evans. See "Data change" for further contributors.
