GR10T

Kolster Brandes Ltd. (KB, K.B., ITT); Foots Cray; GB

Data
Forum
Pictures
Collections

  • Year
  • 1951
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 238322

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast plus more than 2 Short Wave bands.
  • Power type and voltage
  • Alternating Current supply (AC) / 100-120; 200-220; 230-250 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 inch = 20.3 cm
  • Material
  • Wooden case
  • from Radiomuseum.org

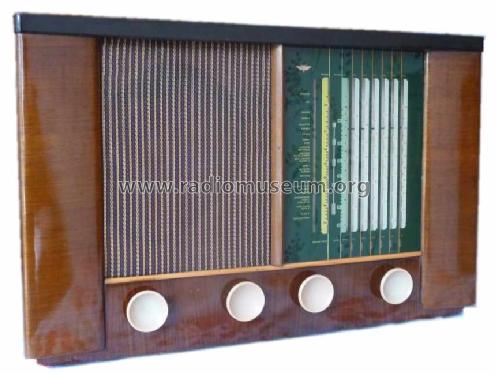

  • Model: GR10T - Kolster Brandes Ltd. KB, K.B.,
  • Shape
  • Tablemodel, with any shape - general.
  • Dimensions (WHD)
  • 485 x 305 x 200 mm / 19.1 x 12 x 7.9 inch
  • Notes

  • An export model as it's got no Long wave and not listed in usual UK service sources. Completely different to the UK Domestic Market GR10/1, but cabinet and bands match the 6V vibrator pack driven GR13T, also similar in apperance to the LR30

    Features

    • Aerial/Earth sockets (no built in aerial).
    • PU/Gram sockets.
    • External speaker sockets with screw switch.
    • Rear voltage selector switch accessible
    • Like the GR13T a flag moves at bottom of tuning scale to indicate band.

    8 Wavebands:

    • MW 185 ... 550 m
    • SW 35 ... 100 m (3 to 9.5 MHz)
    • 31m
    • 25m
    • 19m
    • 15m
    • 13m
    • 11m
  • Author
  • Model page created by Michael Watterson. See "Data change" for further contributors.
