Starlight Serenade KP031; Kolster Brandes Ltd. (ID = 2039267) R-Player
Kolster Brandes Ltd.: Starlight Serenade KP031 [R-Player] ID = 2039267 1280x1001
Select picture or schematic to display from thumbnails on the right and click for download.
For model Starlight Serenade KP031, Kolster Brandes Ltd. (KB, K.B., ITT); Foots Cray; GB:
Although not seen in this photo the plastic bottom half of the case had suffered badly from sunlight damage and the plastic was cracking and discoloured.

Country:  Great Britain (UK)
Manufacturer / Brand:  Kolster Brandes Ltd. (KB, K.B., ITT); Foots Cray; GB
Year: 1965 Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) 4: OC75 OC75 AC128 AC128
Main principle Audio-Amplification
Wave bands - without
Details Rec.Player+Audio.Amp+LS
Power type and voltage Alternating Current supply (AC) / 220-240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 2 W (unknown quality)
from Radiomuseum.org Model: Starlight Serenade KP031 - Kolster Brandes Ltd. KB, K.B.,
Material Plastics (no bakelite or catalin)
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 15.5 x 7.5 x 17 inch / 394 x 191 x 432 mm
Notes

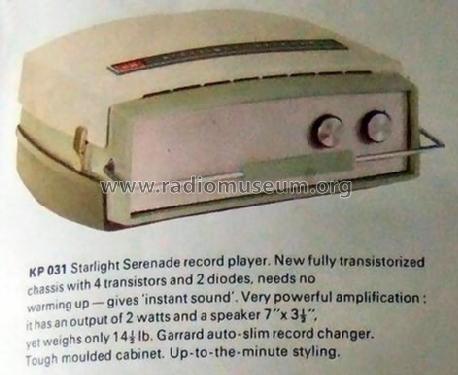

Record reproducer fitted with Garrard type Autoslim record changer & Garrard type GC8M cartridge. Speaker 7 x 3.5 inches. Same chassis as RGD model RP231.

Uses STC amplifier chassis type PC2

Net weight (2.2 lb = 1 kg) 14.5 lb (14 lb 8 oz) / 6.583 kg
Source of data -- Schematic
Circuit diagram reference Radio and TV Servicing books (R&TVS) book

Model page created by Keith Staines. See "Data change" for further contributors.
