• Year
  • 1965 ?
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 176393

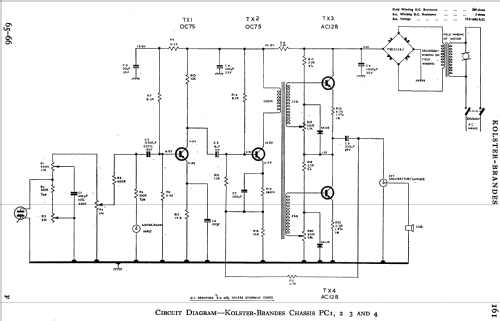

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 4
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Rec.Player+Audio.Amp+LS
  • Power type and voltage
  • Alternating Current supply (AC) / 200-250 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
  • Power out
  • 2 W (unknown quality)
  • from Radiomuseum.org

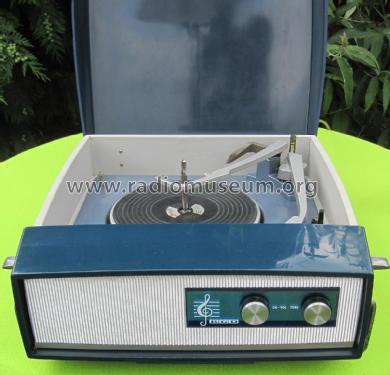

  • Model: RP231 - RGD, Radio Gramophone
  • Notes
  • Record reproducer fitted with Garrard type Autoslim record changer & Garrard type GC8M cartridge. Speaker 7 x 3 5/8th inches. Same chassis as KB model KP031.

  • Source of data
  • -- Schematic
  • Circuit diagram reference
  • Radio and TV Servicing books (R&TVS) book
  • Literature/Schematics (1)
  • ERT Chart 1623
  • Author
  • Model page created by Keith Staines. See "Data change" for further contributors.
