Rhapsody de luxe Super 8 VP31

Rhapsody de luxe Super 8 VP31; Kolster Brandes Ltd. (ID = 1813301) Radio Rhapsody de luxe Super 8 VP31; Kolster Brandes Ltd. (ID = 272543) Radio
Rhapsody de luxe Super 8 VP31; Kolster Brandes Ltd. (ID = 272544) Radio Rhapsody de luxe Super 8 VP31; Kolster Brandes Ltd. (ID = 1253050) Radio
Rhapsody de luxe Super 8 VP31; Kolster Brandes Ltd. (ID = 1253051) Radio Rhapsody de luxe Super 8 VP31; Kolster Brandes Ltd. (ID = 1253052) Radio
Rhapsody de luxe Super 8 VP31; Kolster Brandes Ltd. (ID = 1813302) Radio Rhapsody de luxe Super 8 VP31; Kolster Brandes Ltd. (ID = 1813304) Radio
Rhapsody de luxe Super 8 VP31; Kolster Brandes Ltd. (ID = 1813306) Radio Rhapsody de luxe Super 8 VP31; Kolster Brandes Ltd. (ID = 1815438) Radio
Use red slider bar for more.
Rhapsody de luxe Super 8 VP31; Kolster Brandes Ltd. (ID = 1813301) Radio
Kolster Brandes Ltd.: Rhapsody de luxe Super 8 VP31 [Radio] ID = 1813301 1000x848
Select picture or schematic to display from thumbnails on the right and click for download.
For model Rhapsody de luxe Super 8 VP31, Kolster Brandes Ltd. (KB, K.B., ITT); Foots Cray; GB:

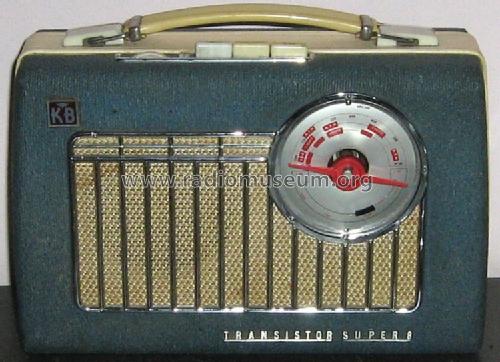

This is a nice example of the KB VP31

Country:  Great Britain (UK)
Manufacturer / Brand:  Kolster Brandes Ltd. (KB, K.B., ITT); Foots Cray; GB
Year: 1963 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 8: 2G344 2G345 2G345 Y25_Transistor 2G371 2G371 2G381 2G339
Main principle Superheterodyne (common); ZF/IF 470 kHz
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Dry Batteries / 9 Volt

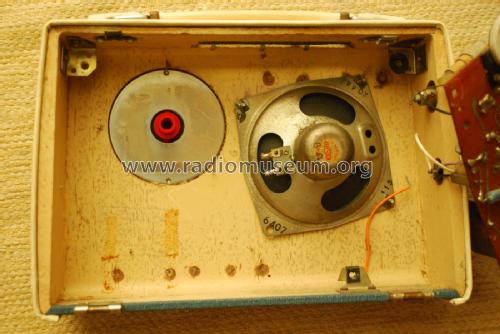

Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
Power out 0.5 W (unknown quality)
from Radiomuseum.org Model: Rhapsody de luxe Super 8 VP31 - Kolster Brandes Ltd. KB, K.B.,

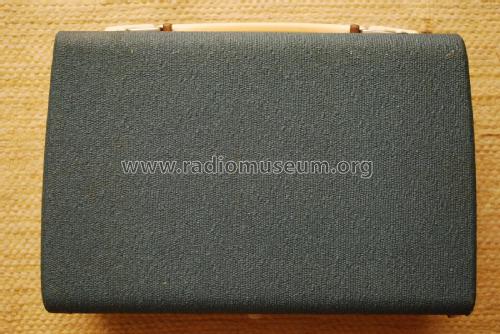

Material Leather / canvas / plastic - over other material
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 260 x 190 x 90 mm / 10.2 x 7.5 x 3.5 inch
Notes

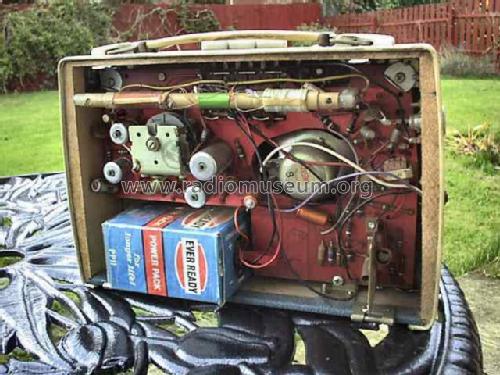

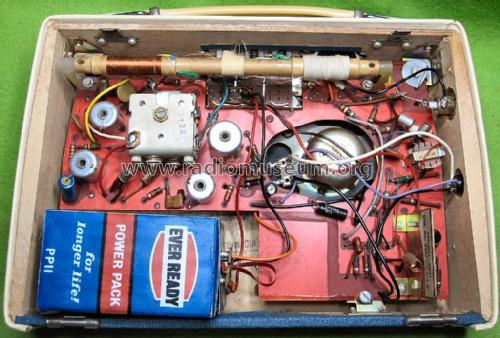

Battery PP11

KB Service note;

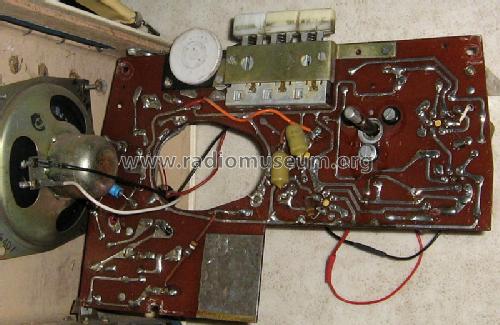

The VP31 has the same chassis as the KB VP21 but with fabric covered wood cabinet.

Net weight (2.2 lb = 1 kg) 1.3 kg / 2 lb 13.8 oz (2.863 lb)
Price in first year of sale 15.75 GBP
Mentioned in Radio! Radio! (Page 260)

Model page created by John Koster. See "Data change" for further contributors.
