• Country
• Switzerland

• Manufacturer / Brand
• Komet Radio AG; Mitlödi

• Year
• 1947–1950

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 12209

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• ECH21 EF22 EF22 6H6 EF22 6L6 AZ21

• Main principle
• Superheterodyne (common); ZF/IF 470 kHz

• Tuned circuits
• 8 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 145; 220; 240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 25 cm = 9.8 inch

• Material
• Wooden case

• from Radiomuseum.org

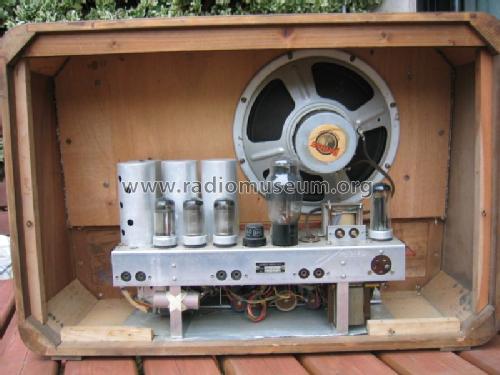

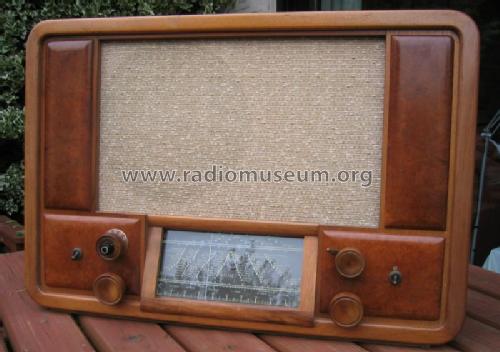

• Model: K102 - Komet Radio AG; Mitlödi

• Dimensions (WHD)
• 620 x 420 x 240 mm / 24.4 x 16.5 x 9.4 inch

• Notes
• KW-Lupe; 3ZF!

• Price in first year of sale
• 825.00 SFr

• External source of data
• E. Erb 3-907007-36-0

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Picture reference
• Das Modell ist im «Radiokatalog» (Erb) abgebildet.
